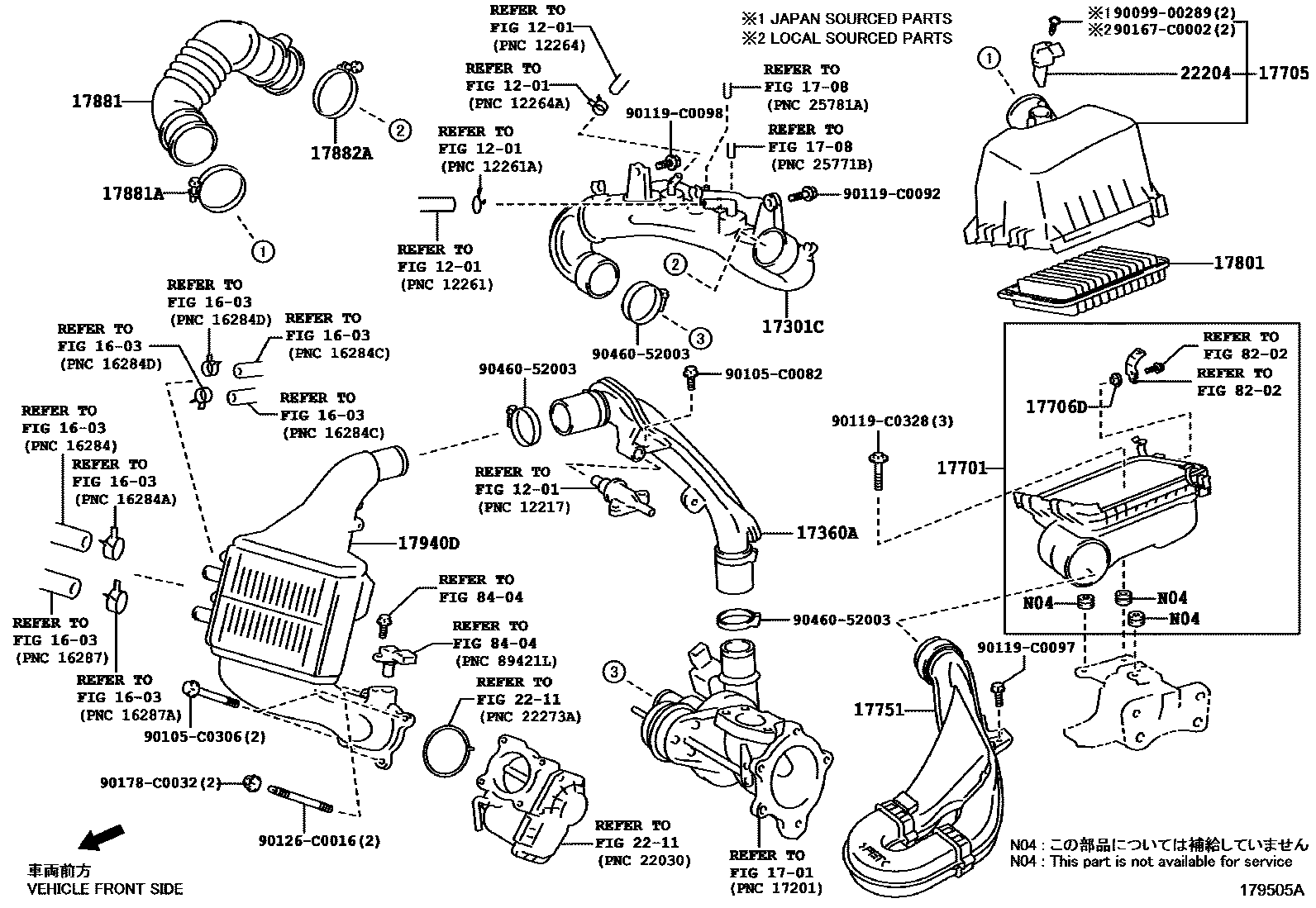

AIR CLEANER

0001 1 0002 1 0003 1EXHAUST EMISSION CONTROL-CHIN0004 1 0005 1 0006 1BEIJING SPEC

1201

1603

1701

1708

17301CDUCT SUB-ASSY, AIR INLET, NO.1

main17301-0Y010i9NRFTS..NRE181201612-201710

sub17301-0Y011

sub25791-0Y040

main17301-0Y011i9NRFTS..NRE181201710-201806

main17301-0Y021i9NRFTS..NRE181201806

17360ATUBE ASSY, AIR

main17360-0Y010i9NRFTS..NRE181201612-201706

sub17360-0Y020

main17360-0Y020i9NRFTS..NRE181201706

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T100i2ZRFE..ZRE182..CVT201408-201706

main17701-0T170i8ZRFXE..ZWE182201512-201706

main17701-0T170i8ZRFXE..ZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B,(L)

main17701-37170i8ZRFXE..ZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B,(J)

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T131i2ZRFE..ZRE182201408-201706

main17705-0T210i8ZRFXE..ZWE182201512-201706

main17705-0Y230i9NRFTS..NRE181201612-201706

main17705-0Y290i9NRFTS..NRE181..CVT201810

EXHAUST EMISSION CONTROL-CHINA 6B

main17705-37131i8ZRFXE..ZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B

17706DSTAY SUB-ASSY, AIR CLEANER

main17706-0T010i9NRFTS..NRE181201612-201706

(L)

main17706-22010i9NRFTS..NRE181201612-201706

(J)

17751INLET, AIR CLEANER, NO.1

main17751-0T180i1ZRFE,2ZRFE..ZRE18#201408-201701

sub17751-0T181

main17751-0T181i2ZRFE..ZRE182201701-201706

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T020i2ZRFE..ZRE182201408-201706

main17801-0T080i8ZRFXE..ZWE182201512-201706

(L)

main17801-37021i8ZRFXE..ZWE182201512-201706

(J)

17881HOSE, AIR CLEANER, NO.1

main17880-0T370i1ZRFE..ZRE181..5F201408-201611

main17880-0T380i2ZRFE..ZRE182..6F201408-201706

main17880-0T410i1ZRFE..ZRE181..CVT201408-201611

main17881-0T430i8ZRFXE..ZWE182201512-201706

main17881-0Y230i9NRFTS..NRE181201612-201706

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i8ZRFXE..ZWE182201512-201706

main96111-10750i9NRFTS..NRE181201612-201706

main96111-10750i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201408-201706

NO.1

main96111-10780i2ZRFE..ZRE182..CVT201408-201706

NO.2

17882HOSE, AIR CLEANER, NO.2

main17882-0T030i8ZRFXE..ZWE182201512-201706

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i8ZRFXE..ZWE182201601-201706

(J)

main90466-62002i8ZRFXE..ZWE182201512-201601

main90466-C0019i8ZRFXE..ZWE182201601-201706

(L)

main96111-10670i9NRFTS..NRE181201612-201706

17940DINTERCOOLER ASSY

main17940-0Y010i9NRFTS..NRE181201612-201706

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i8ZRFXE..ZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B,MARK 22204-0T040

sub22204-28010

main22204-0T040i2ZRFE..ZRE182201706

MARK 22204-0T040

sub22204-28010

main22204-0V010i8ZRFXE..ZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B,MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ZRFE..ZRE182201706

MARK 22204-0V020

main22204-0V020i8ZRFXE..ZWE182201810

EXHAUST EMISSION CONTROL-CHINA 6B,MARK 22204-0V020

main22204-0Y020i9NRFTS..NRE181201612-201706

(L)

main22204-28010i2ZRFE,8ZRFXE..ZRE182,ZWE182201408-201706

MARK 22204-28010

main22204-75030i9NRFTS..NRE181201612-201706

(J)

8202

8404

9009900289

main90099-00289

90105C0082

main90105-C0082

90105C0306

main90105-C0306

90119C0092

main90119-C0092

90119C0097

main90119-C0097

90119C0098

main90119-C0098

90119C0328

main90119-C0328

90126C0016

main90126-C0016

90167C0002

main90167-C0002

90178C0032

main90178-C0032

9046052003

main90460-52003

31 parts on this diagram · 6 diagrams in section
