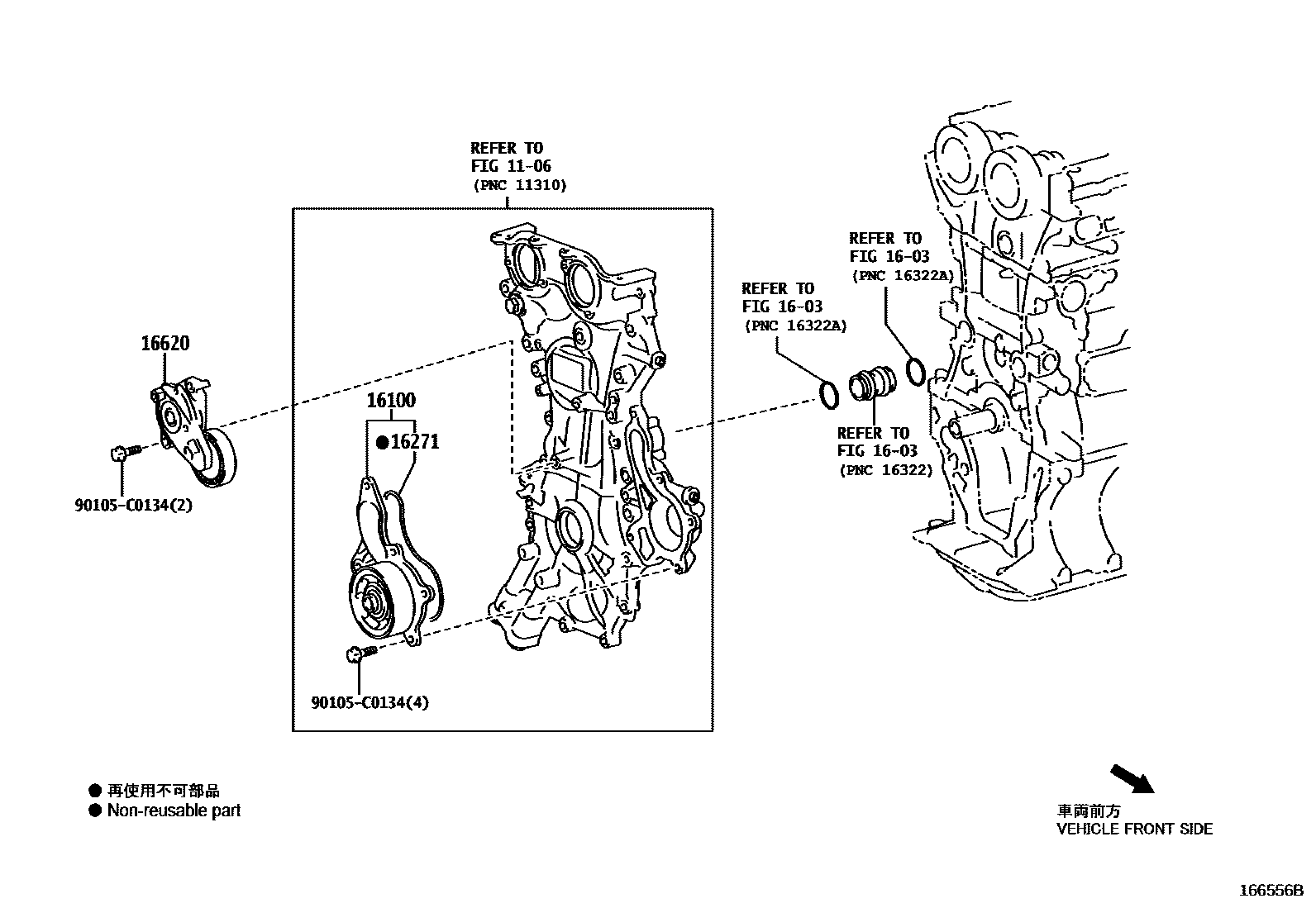

WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09650i2ZRFE..ZRE182..6F201408-201706

*265,MADE IN CHINA

main16100-09650i2ZRFE..ZRE182201706

(L)

main16100-09760i9NRFTS..NRE181201612-201810

main16100-09760i9NRFTS..NRE181201810

(L)

main16100-39565i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201408-201611

*119

main16100-39565i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201408-201611

*265,MADE IN JAPAN

main16100-39565i2ZRFE..ZRE182..CVT201408-201706

*265,MADE IN JAPAN,*119

main16100-39565i2ZRFE..ZRE182201706

(J)

main16100-80014i9NRFTS..NRE181201810

(J)

main161A0-29015i8ZRFXE..ZWE182201512-201706

16271GASKET, WATER PUMP

main16271-0Y050i9NRFTS..NRE181201612-201706

main16271-37020i8ZRFXE..ZWE182201512-201706

main16271-37030i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201408-201611

*265

main16271-37030i2ZRFE..ZRE182..6F201408-201611

*119

main16271-37030i2ZRFE..ZRE182..CVT201408-201706

*265,*119

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T020i2ZRFE..ZRE182..CVT201408-201706

*265

main16620-0Y030i9NRFTS..NRE181201612-201706

main16620-37011i1ZRFE,2ZRFE..ZRE18#201408-201506

*119

sub16620-37030

main16620-37030i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201507-201706

*119

90105C0134

main90105-C0134

6 parts on this diagram · 3 diagrams in section
