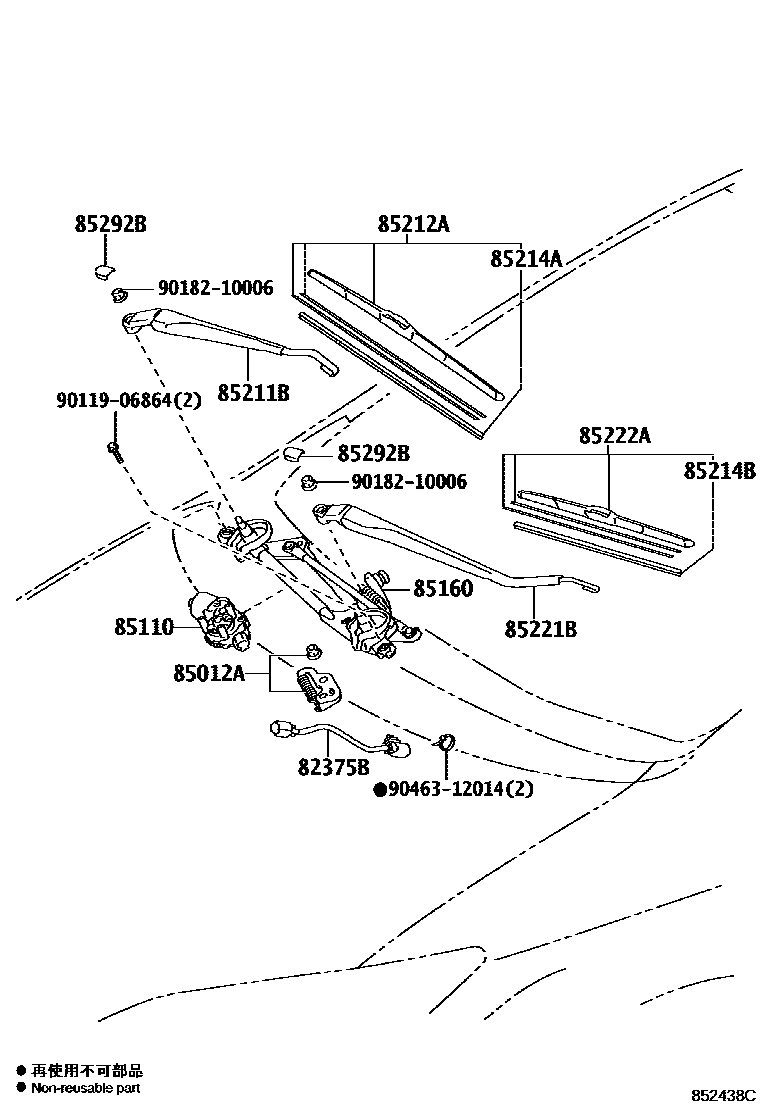

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-12320iZGE21200911-201412

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZGE21200911-201412

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-68040iZGE21200911-201203

sub85110-68041

main85110-68041iZGE21201204-201412

85160LINK ASSY, WINDSHIELD WIPER

main85150-68040iZGE21200911-201412

85211BARM, FRONT WIPER, RH

main85211-68040iZGE21200911-201412

85212ABLADE, FR WIPER, RH

main85212-12430iZGE21200911-201412

85214ARUBBER, WIPER, RH

main85214-68030iZGE21200911-201412

85214BRUBBER, WIPER, LH

main85214-68020iZGE21200911-201412

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-68040iZGE21200911-201412

85222ABLADE, FR WIPER, LH

main85222-75010iZGE21200911-201011

sub85222-75011

main85222-75011iZGE21201012-201412

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D050iZGE21200911-201412

9011906864

main90119-06864

9018210006

main90182-10006

9046312014

main90463-12014

14 parts on this diagram · 1 diagram in section
