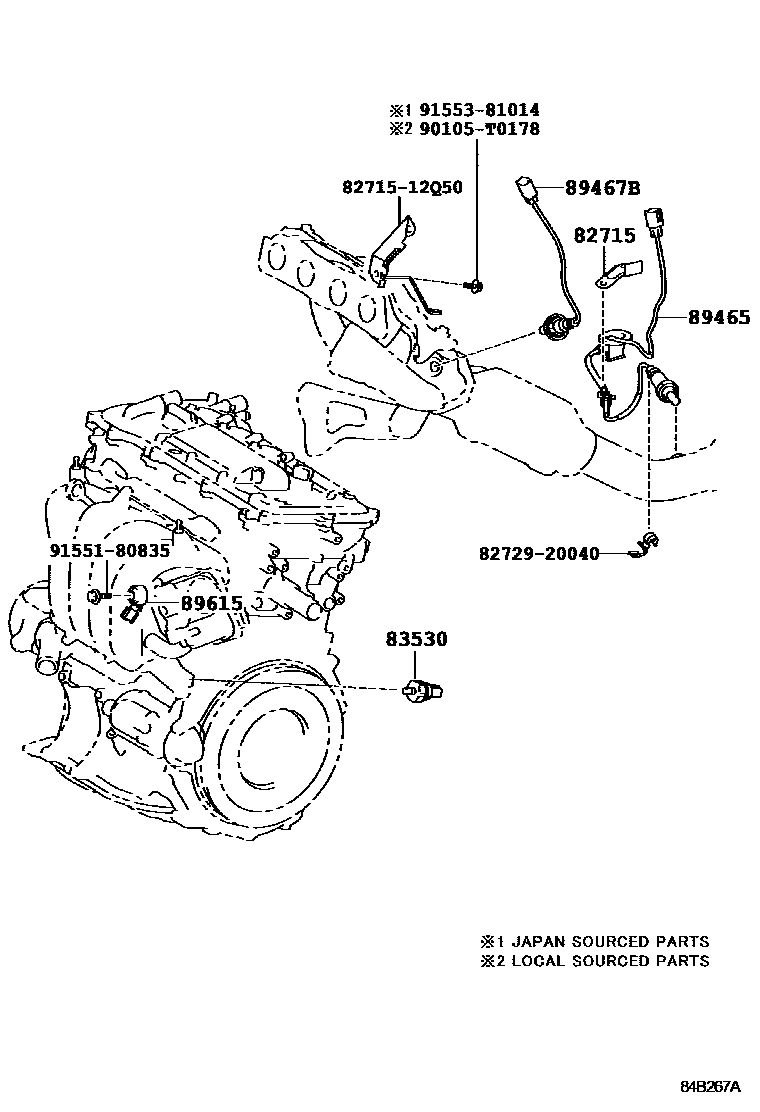

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 2/2 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1STEERING 0011 1DOOR,SEAT,ROOF,FLOOR & BACK D

82715BRACKET,WIRING HARNESS CLAMP

main82715-0M040iZGE21200911-201412

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZGE21200911-201212

DENSO

main83530-60020iZGE21200911-201212

YAZAKI

89465SENSOR, OXYGEN

main89465-68070iZGE21200911-201412

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZGE21200911-201212

main89467-52060iZGE21..G201212-201412

89615SENSOR, KNOCK CONTROL

main89615-20090iZGE21200911-201412

8271512Q50BRACKET,WIRING HARNESS CLAMP

main82715-12Q50

8272920040

main82729-20040

90105T0178

main90105-T0178

9155180835

main91551-80835

9155381014

main91553-81014

10 parts on this diagram · 11 diagrams in section
