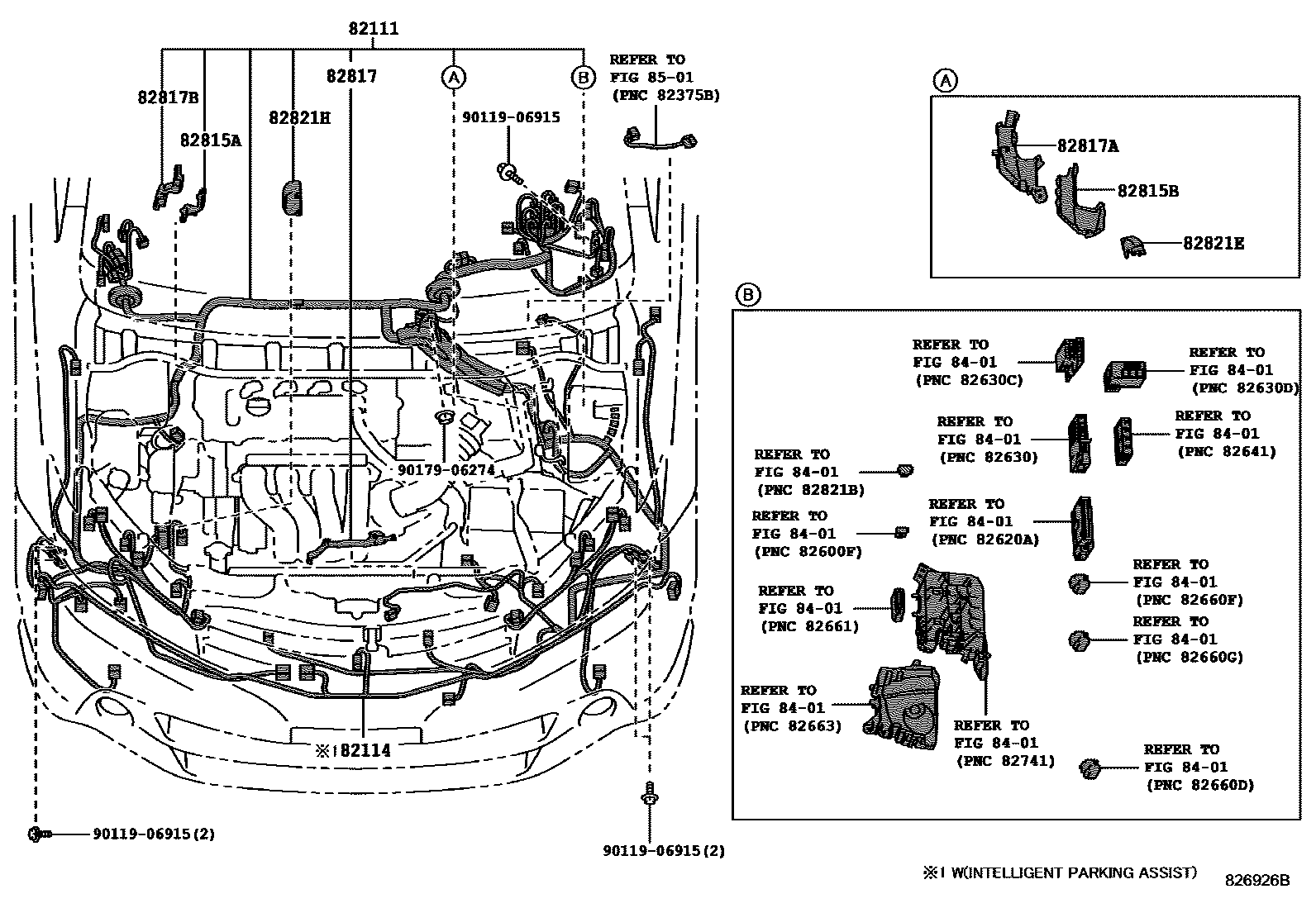

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR, ROOF & SEAT 0006 1CLAMP & BRACKET 0007 1CONNECTOR 1/2 0008 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-0M120iZGE21..4FC..J200911-201112

main82111-0M121iZGE21..J201212-201402

main82111-0M140iZGE21..4FC..G200911-201112

2.0E-OPTION

main82111-0M140iZGE21..4FC..E201112

main82111-0M141iZGE21..E201212-201402

main82111-0M170iZGE21..4FC..E201112

2.0E-OPTION

main82111-0M171iZGE21..E201212-201402

2.0E-OPTION

main82111-0M180iZGE21..E201402-201412

main82111-0M181iZGE21..E201412

main82111-0M190iZGE21..J201402-201412

main82111-0M191iZGE21..J201412

main82111-0M200iZGE21..G201402-201412

82114WIRE, ENGINE ROOM, NO.4

main82114-0M020

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-02040iZGE21200911

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12250iZGE21..4FC200911

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0M060iZGE21..4FC200911

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12D50iZGE21..4FC200911

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-02100iZGE21..4FC200911

82821ECOVER, CONNECTOR

main82821-52140iZGE21..4FC200911

82821HCOVER, CONNECTOR

main82821-12570iZGE21..4FC200911

8401

8501

9011906915

main90119-06915

9017906274

main90179-06274

13 parts on this diagram · 8 diagrams in section
