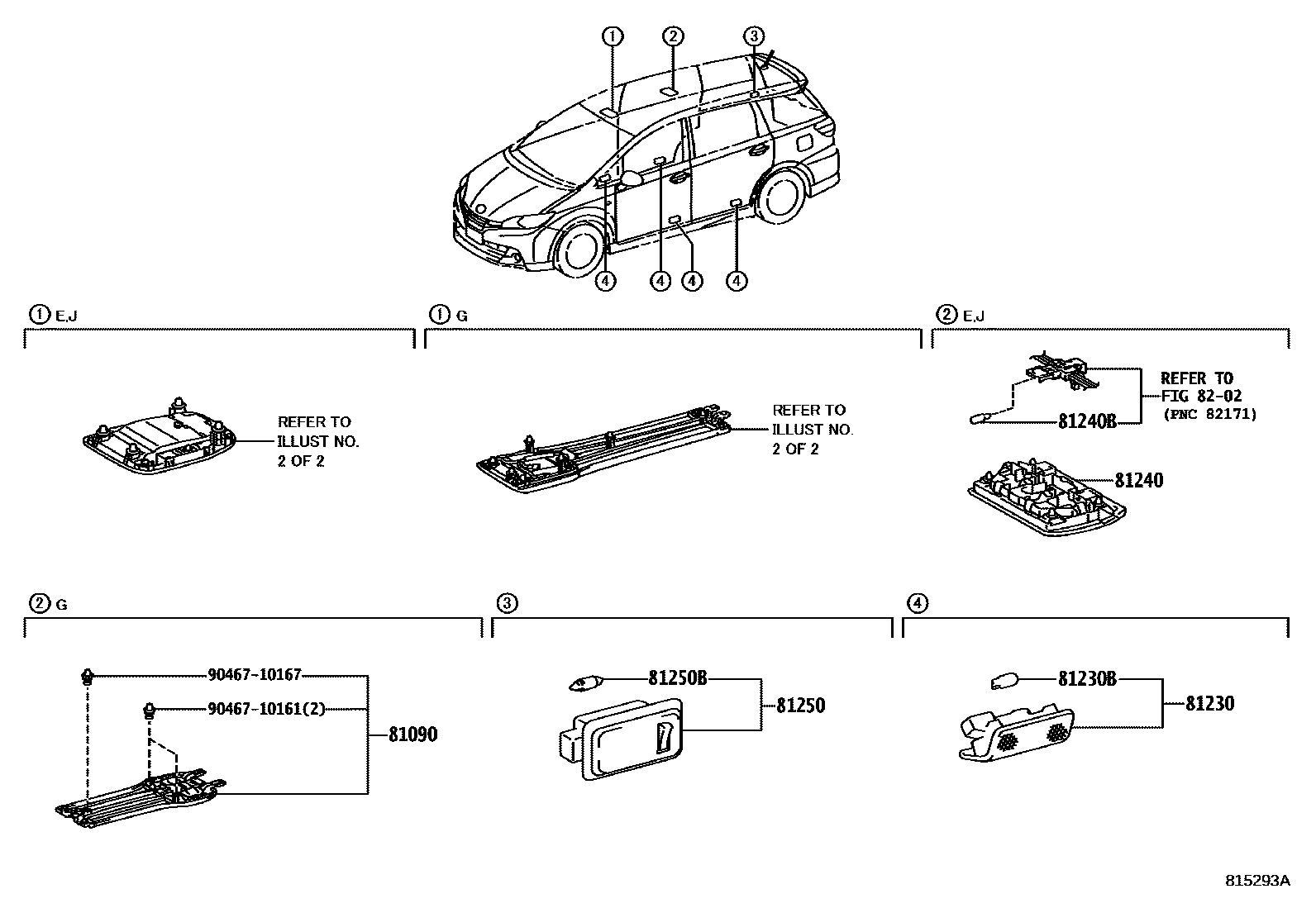

INTERIOR LAMP

0001 1 0002 1 0003 1 0006 1

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-0M010-B0iZGE21..G200911-201112

GRAY,TRIM1#

81230LAMP ASSY, COURTESY

main81230-02040iZGE21200911-201212

81230BBULB(FOR COURTESY LAMP)

main90981-12010iZGE21200911-201212

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B1iZGE21..E,J200911-201606

GRAY,TRIM1#

sub81240-12100

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZGE21..E,J200911-201212

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZGE21200911-201511

main81330-58010iZGE21201511

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZGE21201511

12V 5W

main99132-13050iZGE21200911-201511

12V 5W

8202

9046710161

main90467-10161

9046710167

main90467-10167

10 parts on this diagram · 4 diagrams in section
