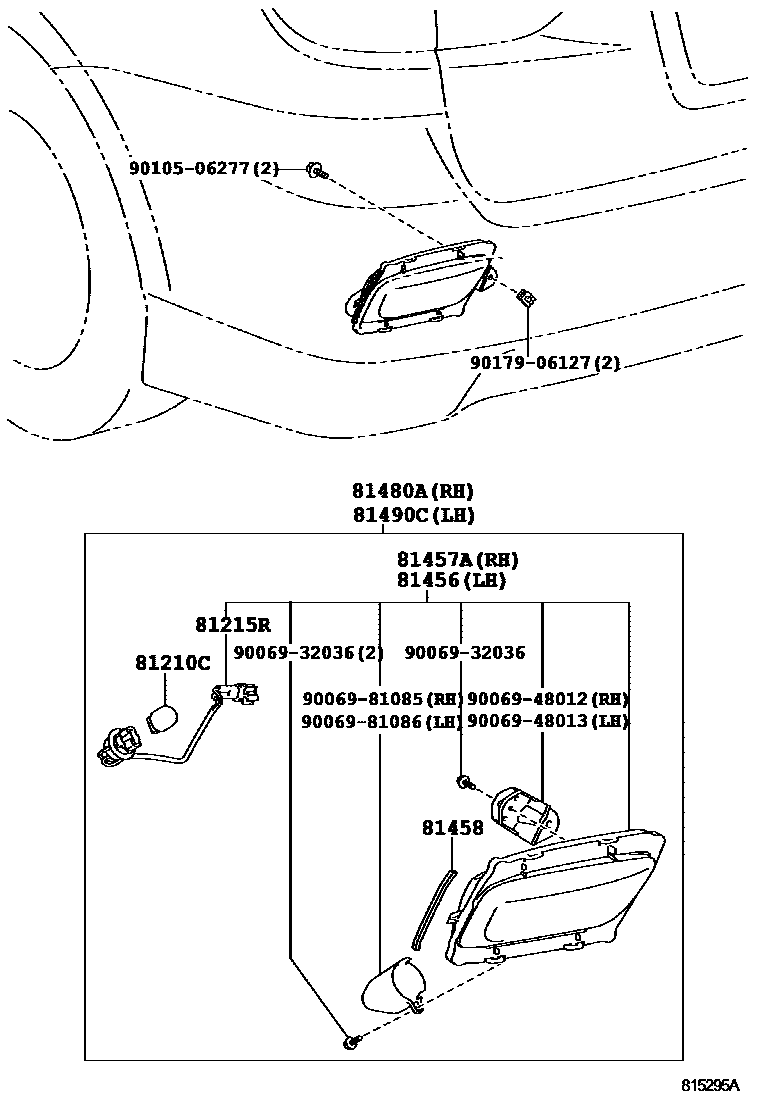

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043iZGE21200911-201212

12V 21W

81215RSOCKET & WIRE, REAR FOG LAMP

main81459-0M010iZGE21200911-201212

81456LENS & BODY, REAR FOG LAMP, LH

main81456-0M010iZGE21200911-201212

81457ALENS & BODY, REAR FOG LAMP, RH

main81457-0M010iZGE21200911-201212

81458PACKING, REAR FOG LAMP

main81458-0M010iZGE21200911-201212

81480ALAMP ASSY, REAR FOG, RH

main81480-0M010iZGE21200911-201606

81490CLAMP ASSY, REAR FOG, LH

main81490-0M010iZGE21200911-201606

9006932036

main90069-32036

9006948012

main90069-48012

9006948013

main90069-48013

9006981085

main90069-81085

9006981086

main90069-81086

9010506277

main90105-06277

9017906127

main90179-06127

14 parts on this diagram · 1 diagram in section
