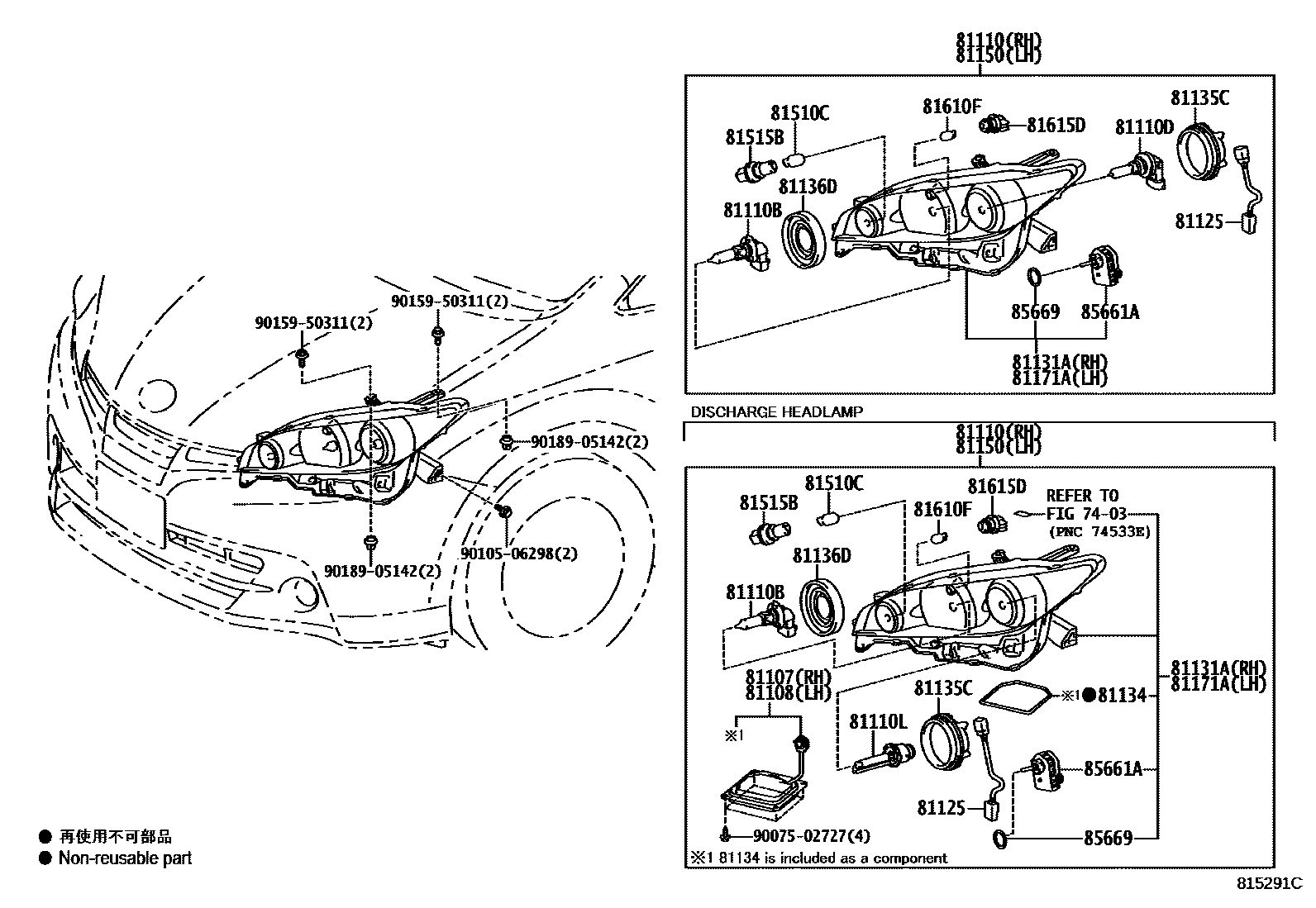

HEADLAMP

7403

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-06560iZGE21..G201009-201412

main81107-8C004iZGE21..E200911-201009

2.0E-OPTION

sub81107-06560

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-06560iZGE21..G201009-201412

main81107-8C004iZGE21..G200911-201009

2.0E-OPTION

sub81107-06560

81110HEADLAMP ASSY, RH

main81110-0M050iZGE21..J200911-201311

sub81110-0M051

main81110-0M051iZGE21..J201312-201406

sub81110-0M052

main81110-0M052iZGE21..J201407

main81110-0M060iZGE21..G200911-201212

main81110-0M061iZGE21..E,G201212-201412

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iZGE21200911-201212

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iZGE21..E201303

12V 55W,HALOGEN

main90981-13082iZGE21..J200911-201302

12V 55W,HALOGEN

sub90981-13075

81110LBULB, DISCHARGE HEADLAMP

main90981-20024iZGE21..G200911-201412

42V 35W

81125CORD, HEADLAMP

main81125-0M050iZGE21..E,J200911-201105

main81125-0M051iZGE21..J201105-201312

sub81125-0M052

main81125-0M052iZGE21..J201312

main81125-0M060iZGE21..E,G200911-201412

81131AUNIT, HEADLAMP, RH

main81130-0M050iZGE21..J200911-201407

sub81130-0M051

main81130-0M051iZGE21..J201407

main81145-0M060iZGE21..G200911-201212

main81145-0M061iZGE21..E,G201212-201412

81134GASKET, HEADLAMP

main90075-68007iZGE21..E,G200911-201412

81135CCOVER, HEADLAMP BACK, NO.1

main81135-0M050iZGE21200911-201212

81136DCOVER, HEADLAMP

main81136-0M050iZGE21200911-201212

81150HEADLAMP ASSY, LH

main81150-0M050iZGE21..J200911-201311

sub81150-0M051

main81150-0M051iZGE21..J201312-201406

sub81150-0M052

main81150-0M052iZGE21..J201407

main81150-0M060iZGE21..G200911-201212

main81150-0M061iZGE21..E,G201212-201412

81171AUNIT, HEADLAMP, LH

main81170-0M050iZGE21..J200911-201407

sub81170-0M051

main81170-0M051iZGE21..J201407

main81185-0M060iZGE21..G200911-201212

main81185-0M061iZGE21..E,G201212-201412

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iZGE21200911-201212

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iZGE21200911-201212

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iZGE21200911-201212

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iZGE21200911-201212

85661AMOTOR, HEADLAMP LEVELING

main85661-12010iZGE21..J200911-201212

main85661-12020iZGE21..G200911-201412

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iZGE21200911-201212

9007502727

main90075-02727

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

24 parts on this diagram · 1 diagram in section
