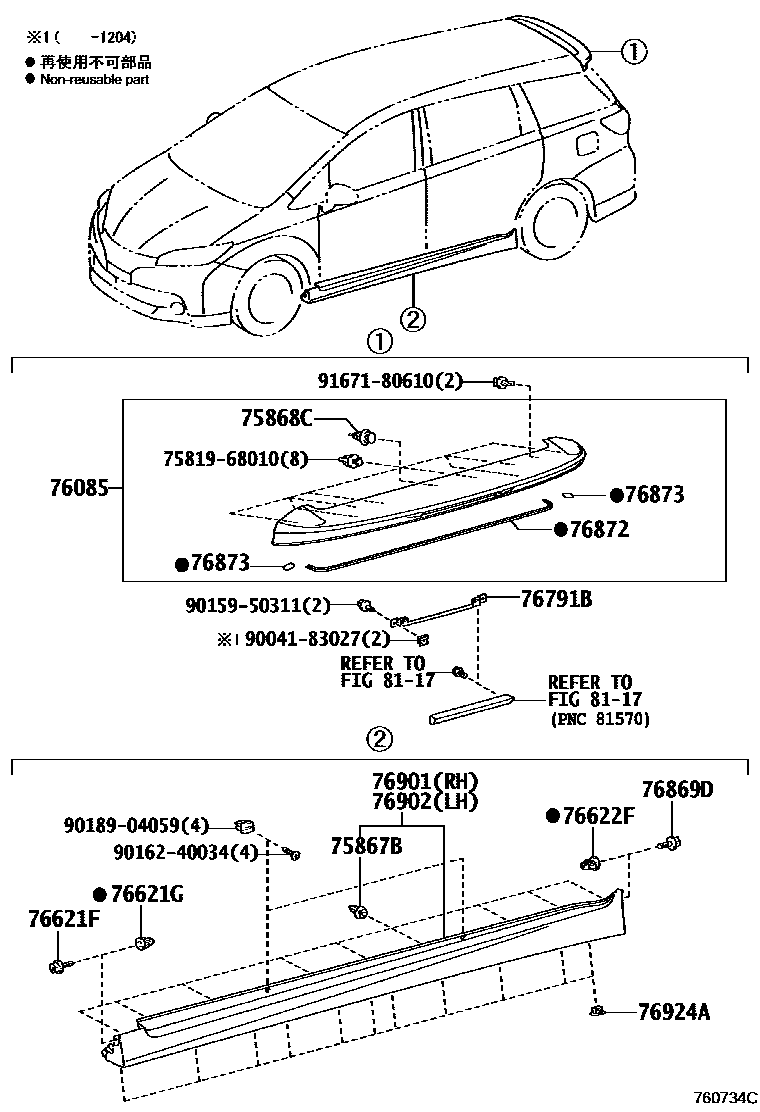

MUDGUARD & SPOILER
75867BCLIP, ROCKER PANEL MOULDING
75868CCLIP, REAR SPOILER, NO.2
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
PAINT REQ.
76621FSCREW, NO.1
76621GGROMMET, NO.1
76622FGROMMET, NO.2
76791BBRACKET, REAR SPOILER
76869DSCREW, NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76924ARETAINER, SIDE MUDGUARD, NO.2
8117
7581968010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
9004183027
9015950311
9016240034
9018904059
9167180610
20 parts on this diagram · 1 diagram in section
