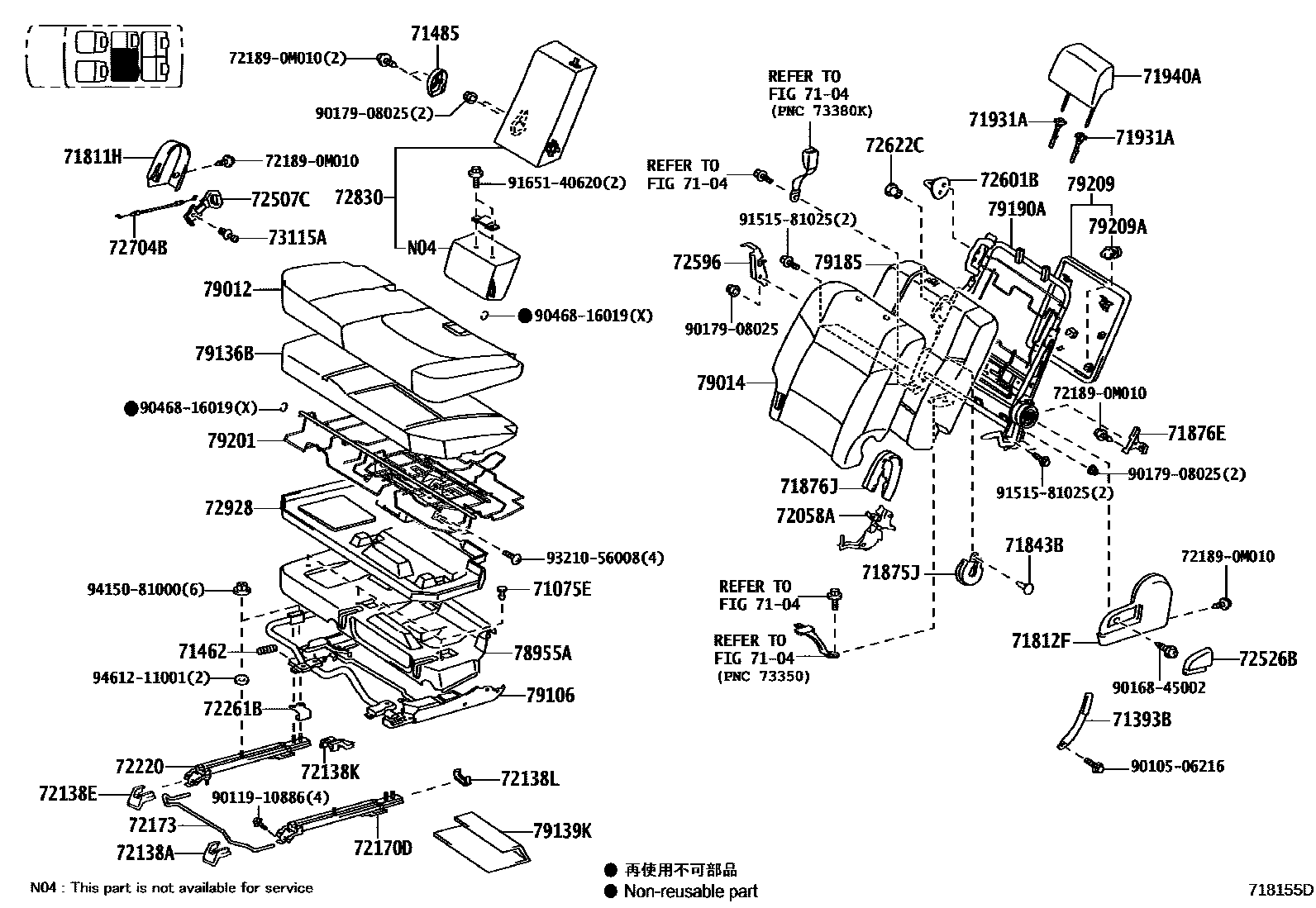

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT (LH) 0002 1REAR NO.1 SEAT (RH) 0003 1REAR NO.2 SEAT (LH) 0004 1REAR NO.2 SEAT (RH)

7104

71075ECLIP(FOR REAR SEAT)

main71769-60010-B6iZGE21200911-201606

DK.GRAY,TRIM1#

sub71769-60010¥390

71393BBAND, REAR SEAT CUSHION, LH

main71393-0M010-C1iZGE21200911-201606

BLACK,TRIM1#

sub71393-0M010

71462SPRING, REAR SEAT CUSHION, NO.2

main71461-68010iZGE21¥740200911-201212

71485COVER, REAR SEAT HINGE

main71485-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

71811HCOVER, RECLINING ADJUSTER, RH

main71811-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

71812FSHIELD, REAR SEAT CUSHION, LH

main71812-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

71843BCLIP, REAR SEAT RECLINING COVER

main90467-05164-B2iZGE21200911-201606

DK.GRAY,TRIM1#

sub90467-05164¥110

71875JCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0M050-B0iZGE21200911-201606

DK.GRAY,TRIM1#

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0M020iZGE21200911-201212

71876JCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0M010-B0iZGE21200911-201606

DK.GRAY,TRIM1#

sub71876-0M010

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-B0iZGE21200911-201606

W(LOCK),DK.GRAY,TRIM1#

sub71930-44020¥1,260

sub71930-02370¥770

main71931-47010-B2iZGE21200911-201606

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-47010¥480

sub71931-42020¥590

71940AHEADREST ASSY, REAR SEAT

main71940-0M050-B1iZGE21..E,G200911-201212

DK.GRAY,TRIM1#

main71940-0M060-C0iZGE21..J200911-201412

BLACK,TRIM1#

main71940-0M070-B0iZGE21..E,G201212-201606

DK.GRAY,TRIM1#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-68011iZGE21¥4,110200911-201212

72138ACOVER, REAR SEAT TRACK, LH

main72137-0M080-B0iZGE21200911-201606

DK.GRAY,TRIM1#

72138ECOVER, SEAT TRACK, INNER LH

main72137-0M090-B0iZGE21200911-201606

DK.GRAY,TRIM1#

72138KCOVER, REAR SEAT TRACK, LH NO.2

main72138-0M010-B0iZGE21200911-201606

DK.GRAY,TRIM1#

72138LCOVER, REAR SEAT TRACK, LH NO.3

main72137-0M070-B0iZGE21200911-201606

DK.GRAY,TRIM1#

72170TRACK ASSY, REAR SEAT, OUTER LH

main72170-0M010iZGE21200911-201212

72170DTRACK ASSY, REAR SEAT, OUTER LH

main72210-0M010iZGE21200911-201212

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-0M010iZGE21200911-201212

72220TRACK ASSY, REAR NO.1 SEAT, INNER LH

main72220-0M010iZGE21200911-201212

72261BREINFORCEMENT, SEAT TRACK, RH

main72261-0M010iZGE21201212

72507CHANDLE SUB-ASSY, RECLINING RELEASE, LH

main72507-68040-B0iZGE21200911-201606

DK.GRAY,TRIM1#

72526BHANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

main72526-47020-B1iZGE21200911-201606

DK.GRAY,TRIM1#

sub72526-47020¥940

72596BASE, RECLINING REMOTE CONTROL, LH

main72596-0M010iZGE21201212

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-68020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

72622CBUSH, REAR SEATBACK PROTECTOR SHAFT

main72622-0M010iZGE21201212

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-68013iZGE21¥1,150200911-201212

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0M070-B0iZGE21..E,G200911-201212

DK.GRAY,TRIM1#

main72830-0M080-B0iZGE21..J200911-201412

DK.GRAY,TRIM1#

main72830-0M090-B0iZGE21..E,G201212-201606

DK.GRAY,TRIM1#

72928COVER, REAR SEAT CUSHION UNDER, LH

main72928-0M010-B0iZGE21200911-201606

DARK GRAY,TRIM1#

sub72928-0M010

73115ACLIP, BELT COMFORT, NO.1

main73115-0M030iZGE21200911-201212

78955COVER, REAR SEAT UNDER TRAY RH

main78955-0M010-B0iZGE21200911-201606

DK.GRAY,TRIM1#

sub78955-0M010

78955ACOVER, REAR SEAT UNDER TRAY

main78955-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

sub78955-0M020

79012COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main79021-0M050-B0iZGE21..J201212-201412

DK. GRAY,TRIM1#

main79021-0M100-B1iZGE21..E,G200911-201212

DK.GRAY,TRIM1#

main79021-0M110-B1iZGE21..J200911-201212

DK.GRAY,TRIM1#

main79021-0M120-B0iZGE21..E,G201212-201606

DARK GRAY,TRIM1#

79014COVER SUB-ASSY, NO.1 SEATBACK, LH

main79023-0M100-B1iZGE21..E,G200911-201212

DK.GRAY,TRIM1#

main79023-0M110-B1iZGE21..J200911-201212

DK.GRAY,TRIM1#

main79023-0M120-B1iZGE21..J201212-201412

DK. GRAY,TRIM1#

main79023-0M130-B1iZGE21..J201212-201606

DARK GRAY,TRIM1#

79106LEG SUB ASSY, NO.1 SEAT, LH

main79106-0M030iZGE21200911-201212

79136BPAD, NO.1 SEAT CUSHION, LH

main79235-0M040iZGE21200911-201212

79139KCLOTH, NO.1 SEAT CUSHION LH

main79139-0M010iZGE21200911-201212

79185PAD, NO.1 SEATBACK, LH

main79275-0M090iZGE21..E,G200911-201212

main79275-0M100iZGE21..J200911-201412

79190ASPRING ASSY, NO.1 SEATBACK, LH

main79204-0M060iZGE21200911-201212

79201FRAME SUB-ASSY, NO.2 SEAT CUSHION

main79201-0M030iZGE21200911-201212

79209BOARD SUB-ASSY, NO.2 SEATBACK

main79207-0M020-B0iZGE21200911-201606

DK.GRAY,TRIM1#

79209ACLIP (FOR NO.2 SEATBACK BOARD)

main67771-12080iZGE21..J¥130200911-201212

721890M010

main72189-0M010

9010506216

main90105-06216¥120

9011910886

main90119-10886¥100

9016845002

main90168-45002¥130

9017908025

main90179-08025¥80

9046816019

main90468-16019¥90

9151581025

main91515-81025¥110

9165140620

main91651-40620¥70

9321056008

main93210-56008¥130

9415081000

main94150-81000¥100

9461211001

main94612-11001¥60

55 parts on this diagram · 4 diagrams in section
