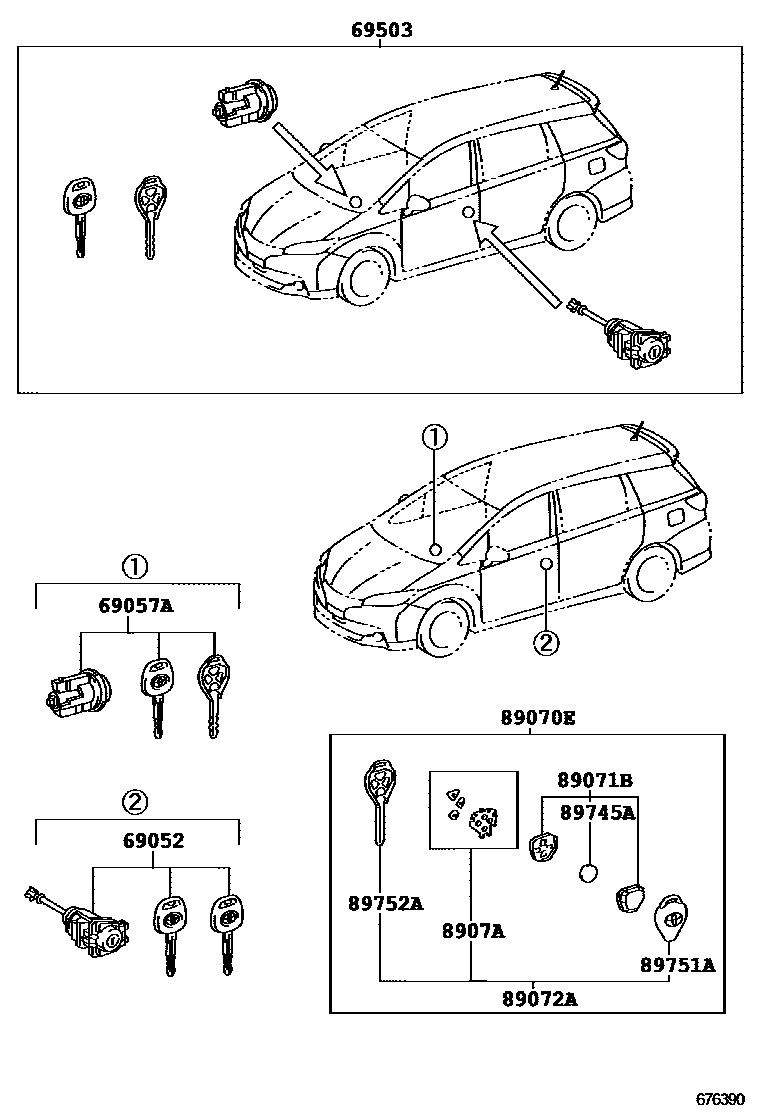

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0M020iZGE21..J200911-201212

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0M050iZGE21..J201212

main69057-0M070iZGE21..E200911-201212

69503CYLINDER SET, LOCK

main69005-0M010iZGE21..J201212

main69005-0M070iZGE21..E200911-201212

main69005-0M080iZGE21..E200911-201412

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0M040iZGE21..E200911-201112

2.0E-OPTION

main89070-0M040iZGE21..J200911-201212

main89070-0M060iZGE21..J201212

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12120iZGE21..E200911-201112

2.0E-OPTION

main89071-12120iZGE21..J200911-201212

main89071-68020iZGE21..J201212

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-0M040iZGE21..E200911-201112

2.0E-OPTION

main89072-0M040iZGE21..J200911-201212

main89072-0M060iZGE21..J201212

8907ASWITCH SET, TRANSMITTER

main8907A-52020iZGE21..J201212

main8907A-71020iZGE21..J200911-201212

main8907A-71020iZGE21..E200911-201112

2.0E-OPTION

89745ABATTERY, TRANSMITTER

main89745-52020iZGE21..E200911-201212

main89745-71010iZGE21..J200911-201212

main89745-71010iZGE21..E200911-201112

2.0E-OPTION

89751ACOVER, TRANSMITTER HOUSING

main89751-0M010iZGE21..E200911-201112

2.0E-OPTION

main89751-0M010iZGE21..J200911-201212

main89751-42090iZGE21..J201212

89752ACASE, TRANSMITTER HOUSING

main89752-52210iZGE21..J201212

main89752-68060iZGE21..E200911-201112

2.0E-OPTION

main89752-68060iZGE21..J200911-201212

10 parts on this diagram · 3 diagrams in section
