BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67293CUSHION, BACK DOOR LOWER STOPPER
67372AWEIGHT, BACK DOOR
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHT,T=3.1,GREEN
75129CCUSHION, REAR LICENCE PLATE
75571FMOULDIMG, BACK DOOR WINDOW
75573CMOULDING, BACK WINDOW, OUTSIDE
75575DMOULDING, BACK WINDOW, LOWER
9011906897
9054109142

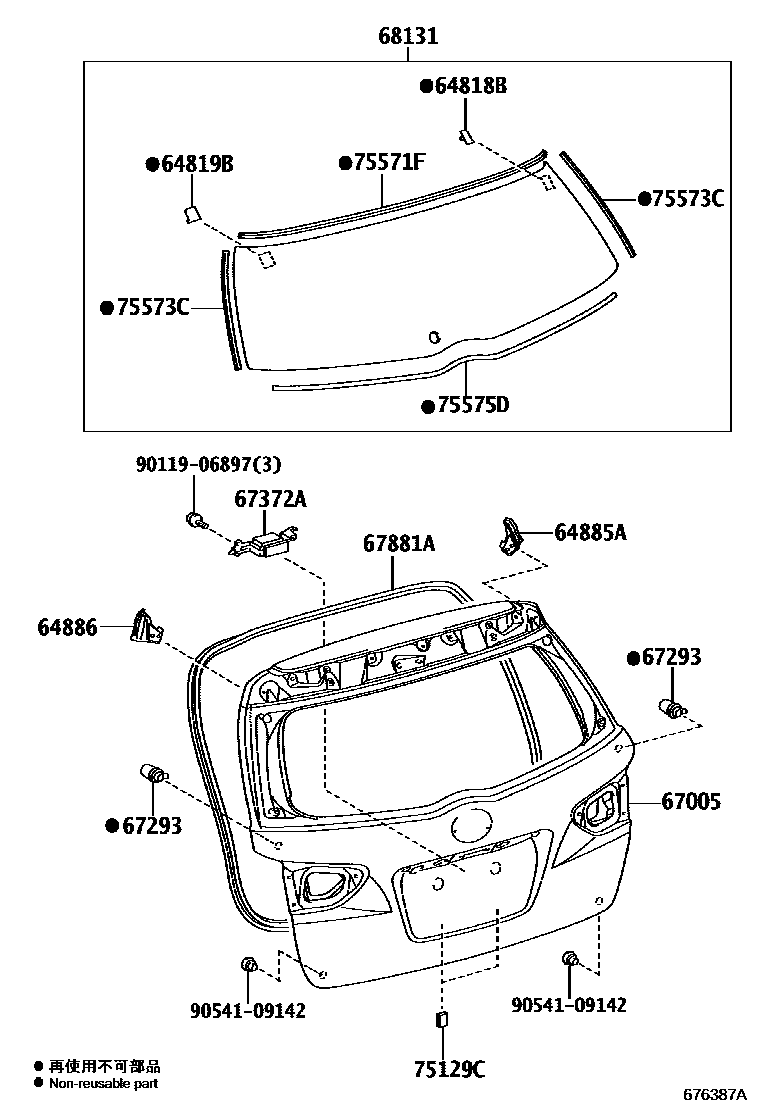

15 parts on this diagram · 2 diagrams in section
