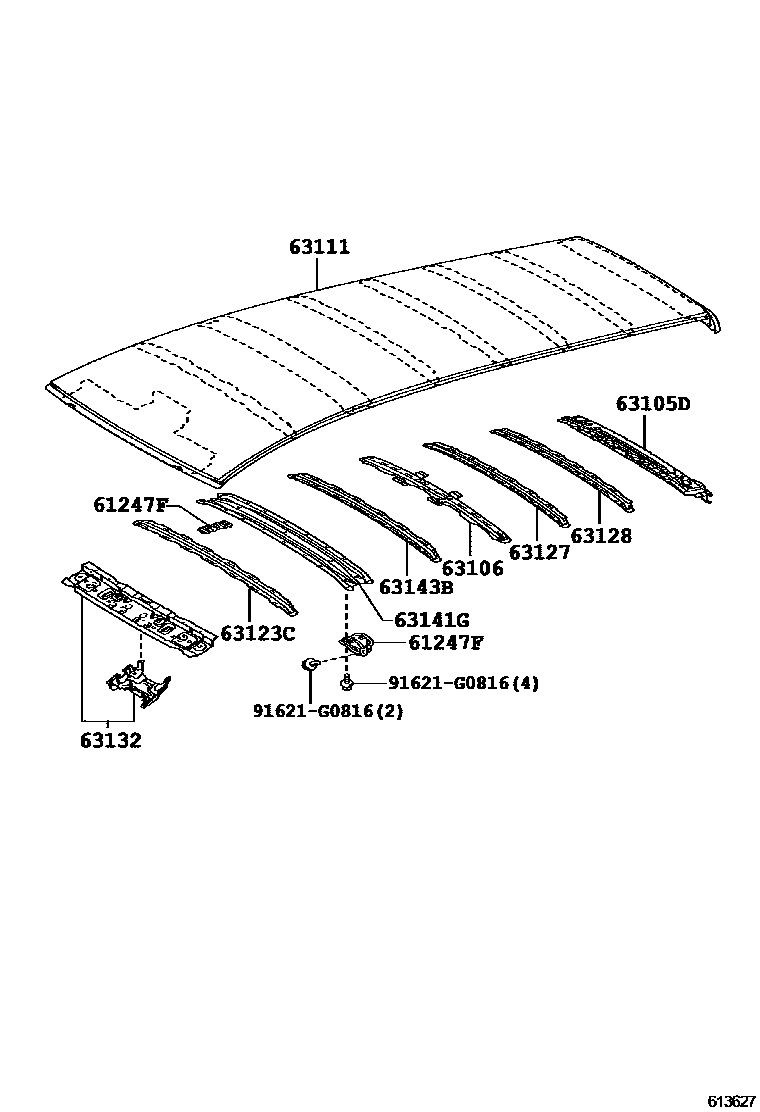

ROOF PANEL & BACK WINDOW GLASS

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-0M010×2iZGE21200911-201212

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0M010iZGE21200911-201212

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-0M010iZGE21200911-201212

63111PANEL, ROOF

main63111-0M030iZGE21200911-201212

63123CREINFORCEMENT, ROOF PANEL

main63123-0M020iZGE21200911-201212

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-0M020iZGE21200911-201212

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-0M010iZGE21200911-201212

63132PANEL, WINDSHIELD HEADER, INNER

main63102-0M901iZGE21200911-201212

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0M010iZGE21200911-201212

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0M010iZGE21200911-201212

91621G0816

main91621-G0816

11 parts on this diagram · 1 diagram in section
