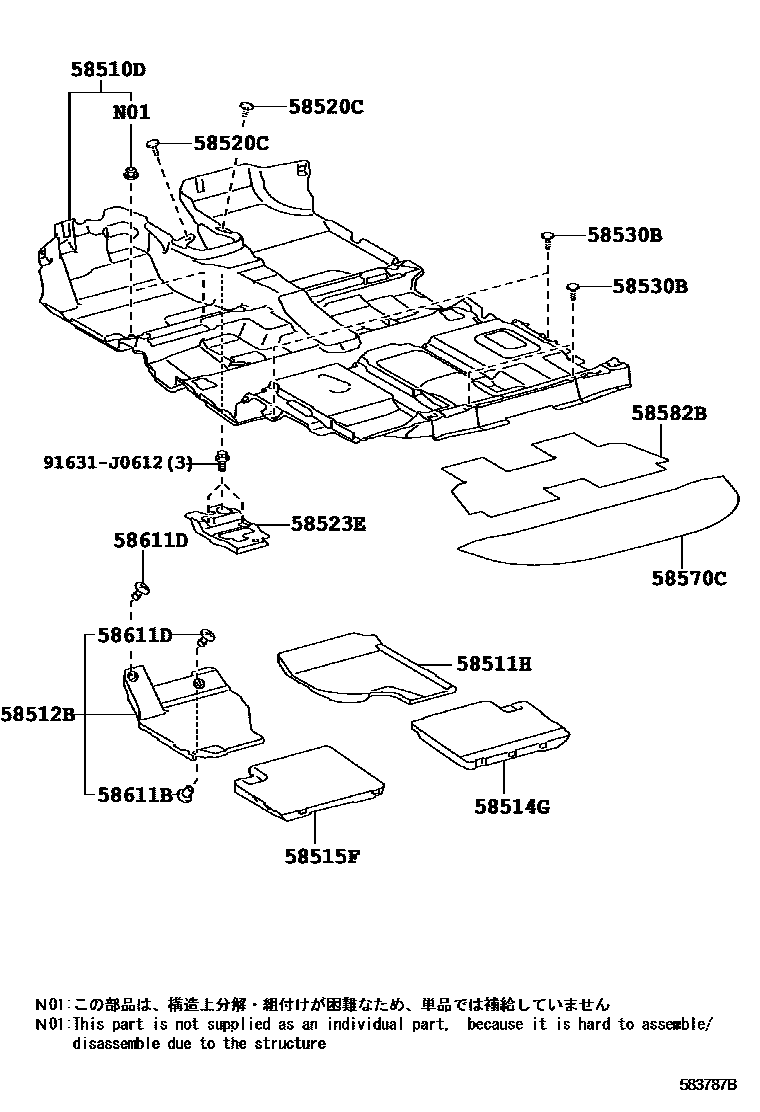

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
58511HMAT, FLOOR, FRONT RH
58512BMAT, FLOOR, FRONT LH
58514GMAT, FLOOR, REAR RH
58515FMAT, FLOOR, REAR LH
58520CCLIP(FOR FRONT FLOOR CARPET)
58523EBRACKET, FLOOR CARPET SET
58530BCLIP(FOR FRONT FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
58582BCARPET, 3RD SEAT FLOOR, NO.1
58611BPLATE, MAT SET, NO.1
58611DPLATE, MAT SET, NO.1 B
91631J0612
13 parts on this diagram · 2 diagrams in section
