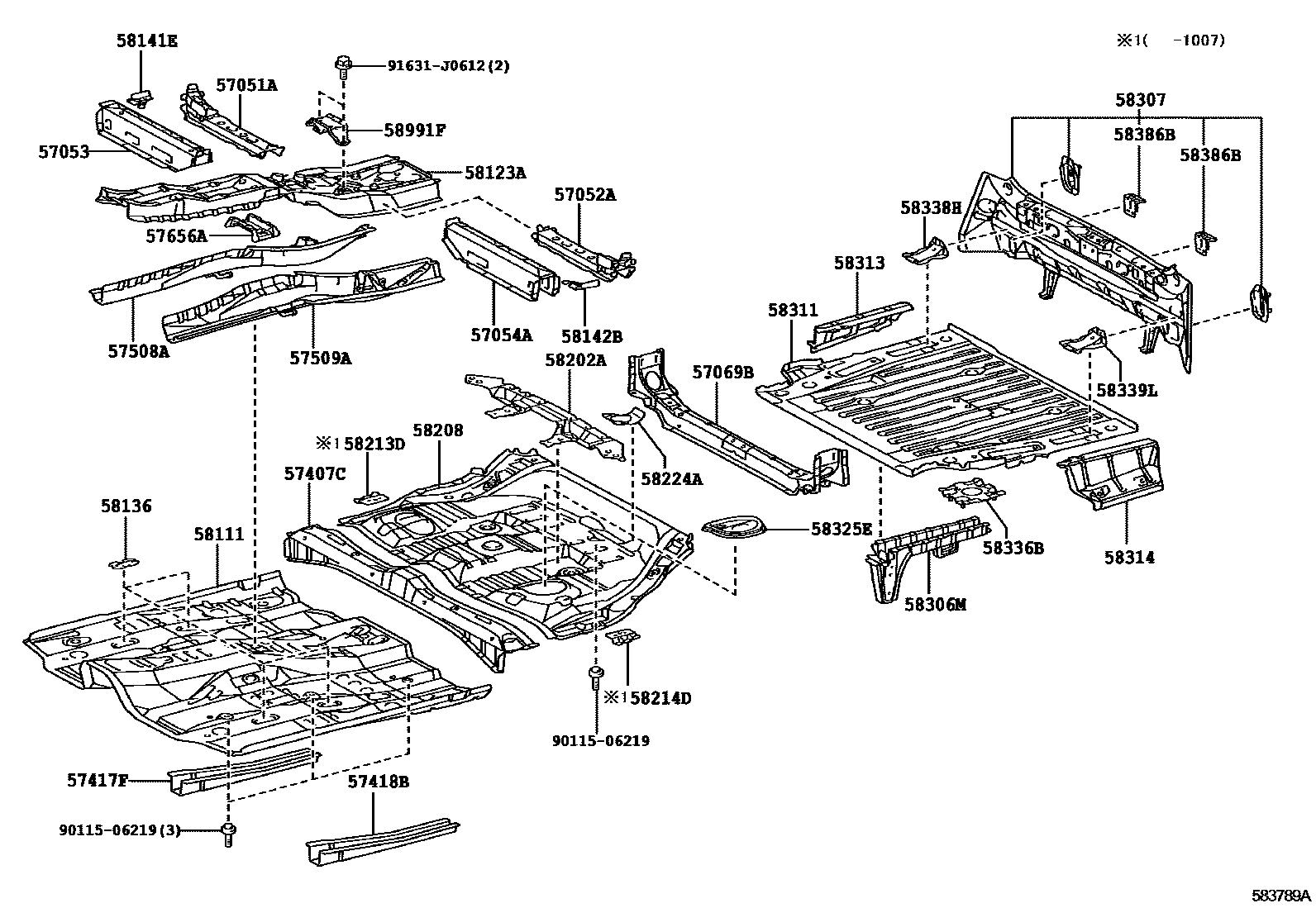

FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58208PAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH
58339LREINFORCEMENT, REAR FLOOR PAN, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58991FBRACKET, CONSOLE BOX MOUNTING, FRONT
9011506219
91631J0612
34 parts on this diagram · 1 diagram in section
