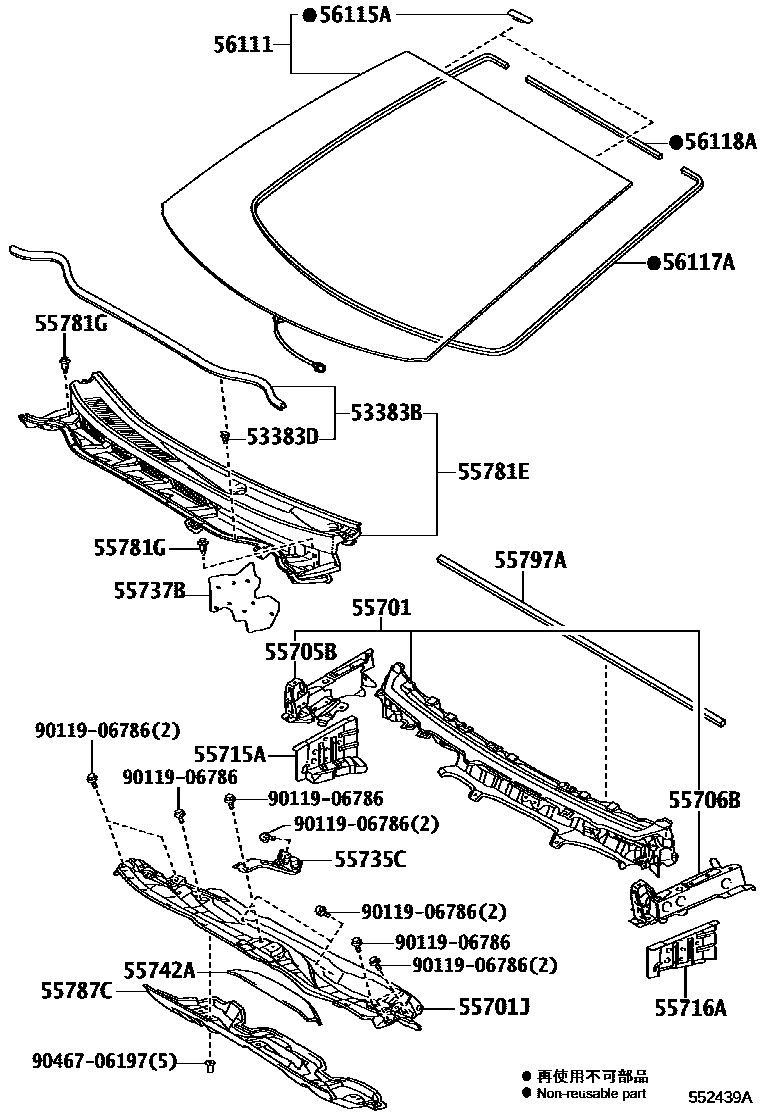

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0M010iZGE21200911-201212

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iZGE21200911-201212

55701PANEL SUB-ASSY, COWL

main55700-0M020iZGE21200911-201212

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0M020iZGE21200911-201212

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0M010iZGE21200911-201212

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0M020iZGE21200911-201212

55715ABRACE, COWL TOP TO APRON, RH

main55715-0M010iZGE21200911-201212

55716ABRACE, COWL TOP TO APRON, LH

main55716-0M020iZGE21200911-201212

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-0M010iZGE21200911-201212

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0M010iZGE21200911-201212

55742ASHEET, COWL TOP INSULATOR

main55742-68050iZGE21200911-201212

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0M020iZGE21200911-201212

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iZGE21200911-201606

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0M020iZGE21200911-201212

55797ASEAL, COWL WATER EXTRACT

main55797-68020iZGE21200911-201212

56111GLASS, WINDSHIELD

main56101-0M030iZGE21200911-201212

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-50100iZGE21200911-201212

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0M010iZGE21200911-201212

L=3326

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0M010iZGE21200911-201212

L=601

9011906786

main90119-06786

9046706197

main90467-06197

21 parts on this diagram · 1 diagram in section
