FLOOR SIDE MEMBER
51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51963DHOOK, TRANSPORT, REAR LH
53651BRACE, REAR FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401GHOOK, FLOOR CARPET
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57404DMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57604BMEMBER SUB-ASSY, REAR FLOOR SIDE, NO.3
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
NO.1
NO.2
57616AMEMBER, REAR FLOOR SIDE, REAR LH
NO.1
NO.2
57631CEXTENSION, REAR FLOOR SIDE MEMBER, FRONT RH
57632CEXTENSION, REAR FLOOR SIDE MEMBER, FRONT LH
57655AMEMBER, REAR FLOOR CROSS, NO.4
57666AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.3
57666BPANEL, LOWER BACK SIDE, LH
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH
57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH
57703BBRACKET SUB-ASSY, REAR SUSPENSION MEMBER, FRONT RH
57704FBRACKET SUB-ASSY, REAR SUSPENSION MENBER, FRONT LH
57735REINFORCEMENT, REAR TORQUE BOX, RH
57736REINFORCEMENT, REAR TORQUE BOX, LH
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
5801
58034ABRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
58035CEXTENSION SUB-ASSY, REAR FLOOR, FRONT
91641K0816
main91641-K0816

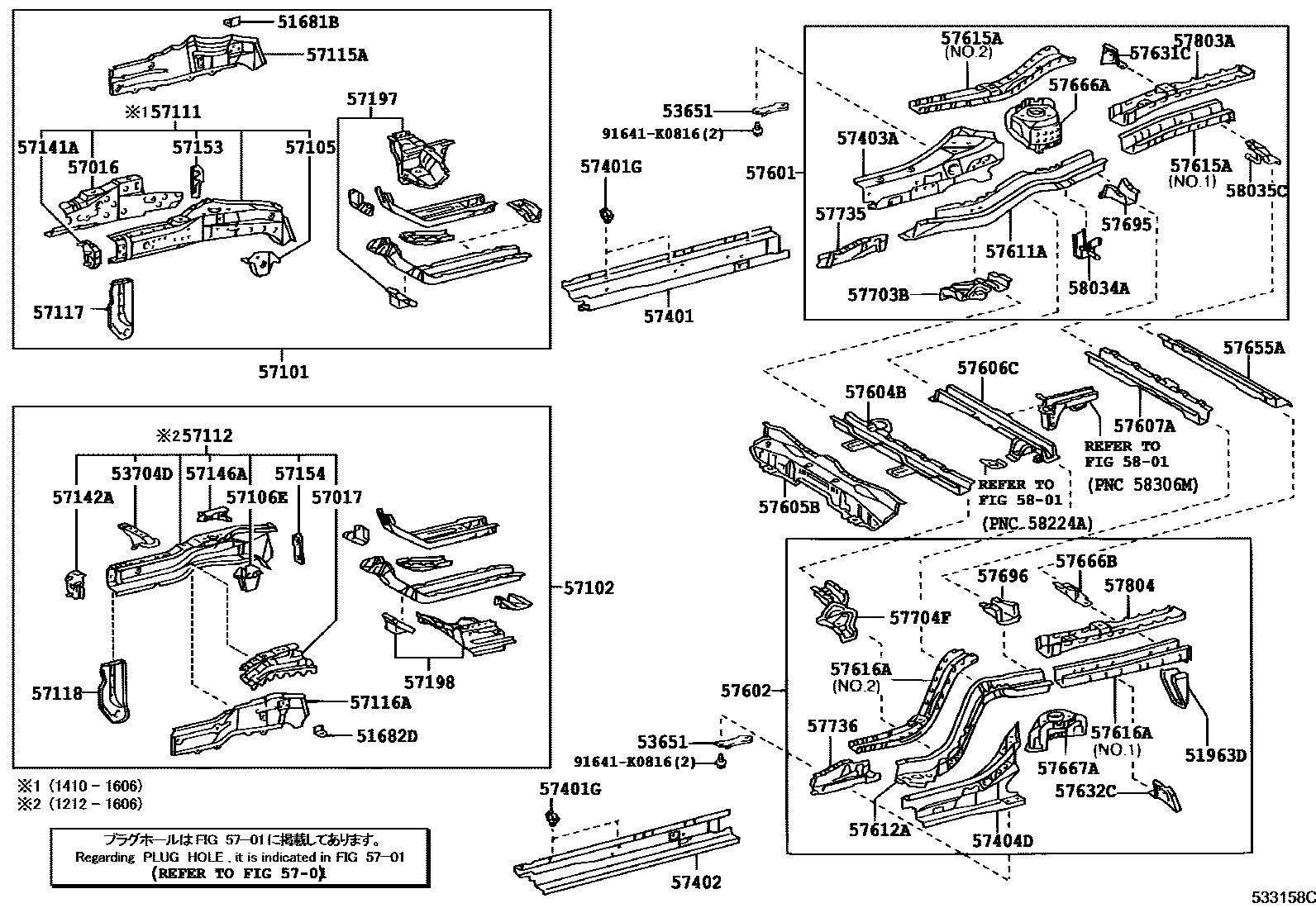

58 parts on this diagram · 1 diagram in section
