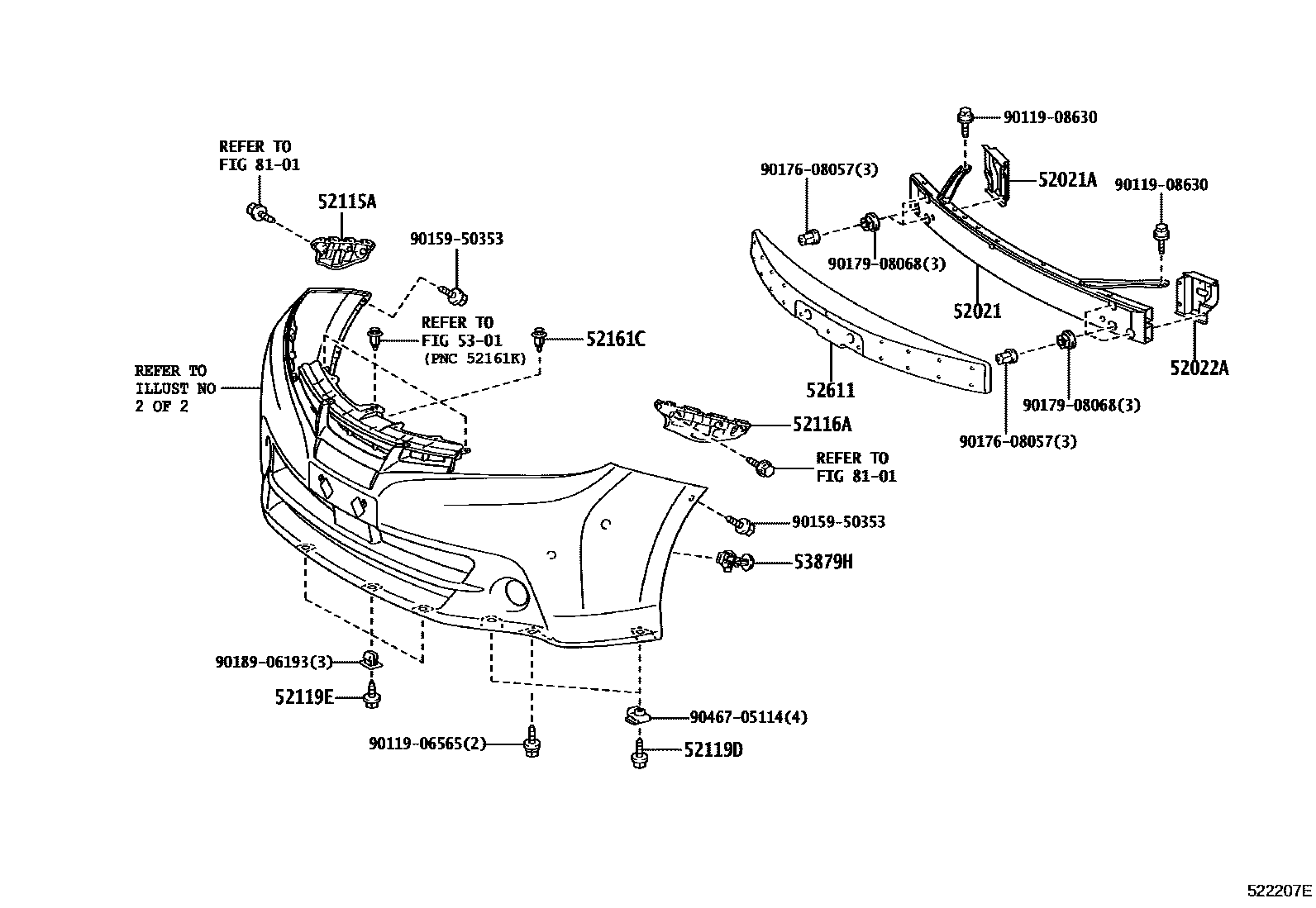

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-68030iZGE21200911-201212

main52021-68040iZGE21201212

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main57143-0M020iZGE21200911-201212

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main57144-0M020iZGE21200911-201212

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0M010iZGE21200911-201212

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0M010iZGE21200911-201212

52119DSCREW, NO.1

main90159-60215iZGE21200911-201606

52119ESCREW, NO.2

main90159-60498iZGE21200911-201606

52161CPIECE, FRONT BUMPER

main52161-0K060iZGE21201212-201606

main52161-16010iZGE21200911-201212

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0M030iZGE21200911-201212

main52611-0M040iZGE21201212

5301

53879HRETAINER, FRONT FENDER LINER

main53879-0K010iZGE21201212

main53879-28010iZGE21200911-201212

8101

9011906565

main90119-06565

9011908630

main90119-08630

9015950353

main90159-50353

9017608057

main90176-08057

9017908068

main90179-08068

9018906193

main90189-06193

9046705114

main90467-05114

19 parts on this diagram · 4 diagrams in section
