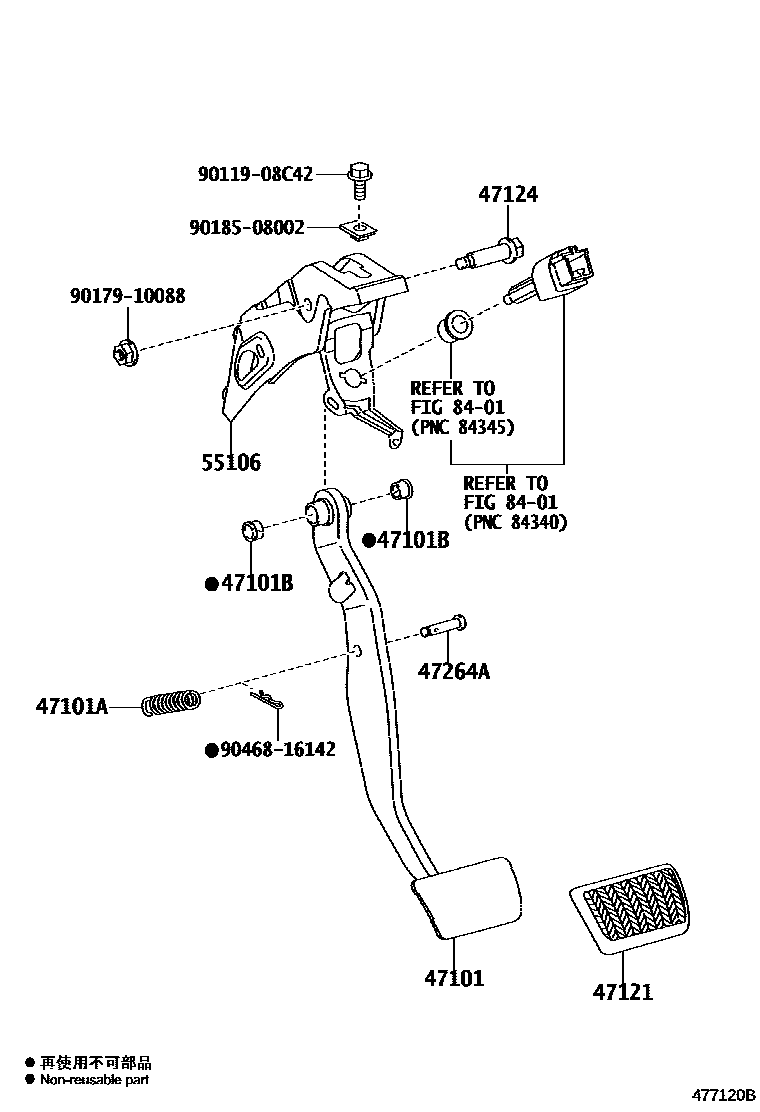

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02380iZGE21200911-201212

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iZGE21¥200200911-201212

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZGE21¥120200911-201212

47121PAD, BRAKE PEDAL

main47121-02060iZGE21200911-201212

47124SHAFT, BRAKE PEDAL

main90109-10174iZGE21¥190200911-201212

47264APIN(FOR PUSH ROD)

main90249-08256iZGE21¥130200911-201212

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02200iZGE21200911-201212

8401

9011908C42

main90119-08C42¥80

9017910088

main90179-10088¥100

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

12 parts on this diagram · 1 diagram in section
