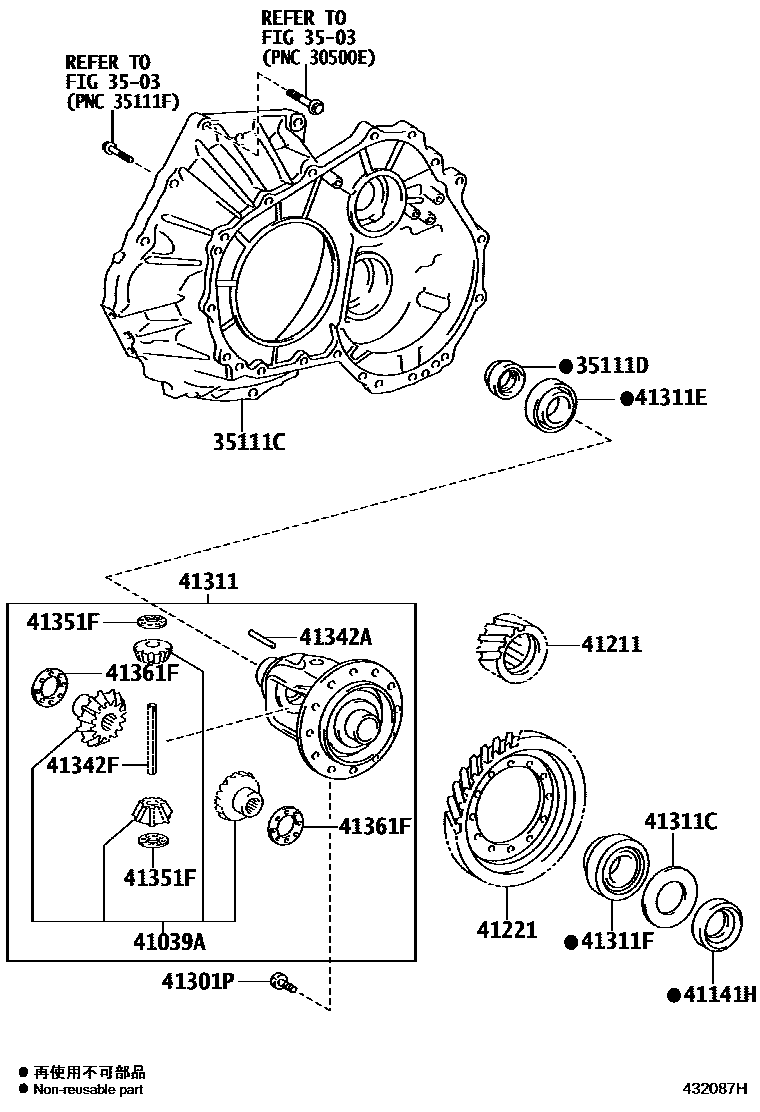

FRONT AXLE HOUSING & DIFFERENTIAL
3503
35111CHOUSING, TRANSAXLE
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
41039AGEAR KIT, DIFFERENTIAL
sub41039-28030
41211PINION, DIFFERENTIAL DRIVE
sub41211-42H03
41221GEAR, FRONT DIFFERENTIAL RING
sub41211-42H03
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
sub41301-28090
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
16 parts on this diagram · 1 diagram in section
