TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

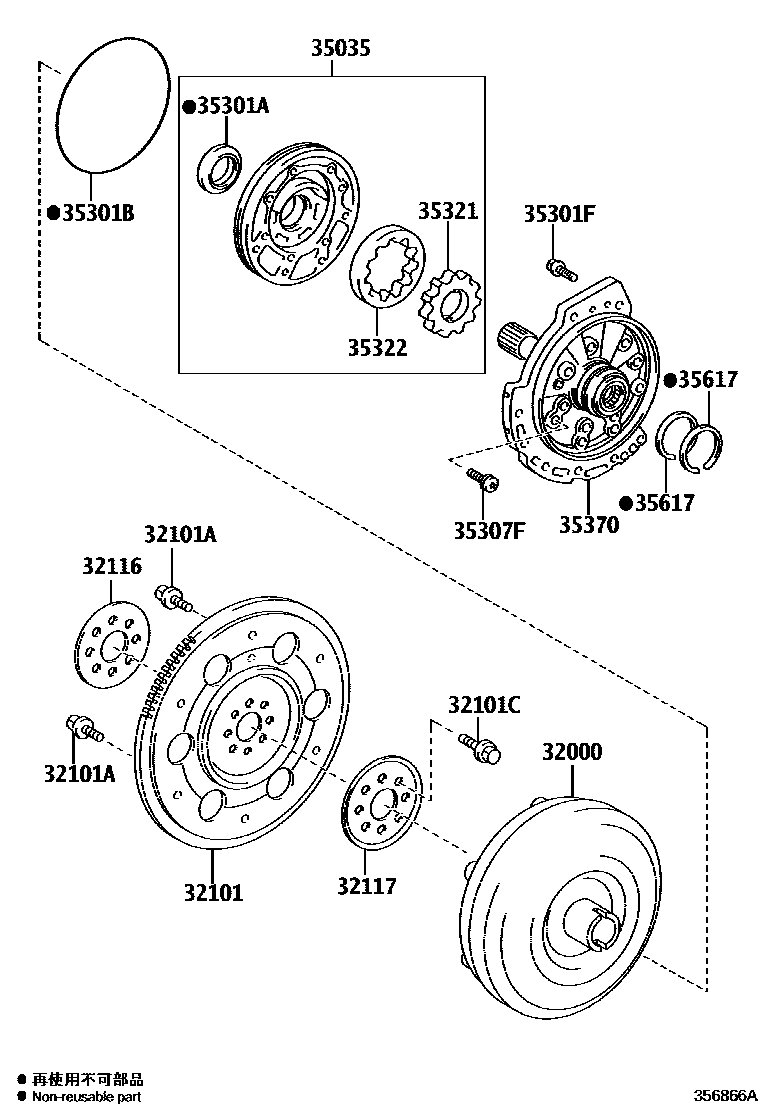

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-20341i200911-201212
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-28050i200911
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200911
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200911
*9-1.25PX12.4-8.4,SILVER
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200911
*10-1.25PX18-13,(J)
main90105-A0022i200911-201003
*10-1.25PX18-13,(L)
sub90105-10048
32116SPACER, DRIVE PLATE, FRONT
main32116-12030i200911
32117SPACER, DRIVE PLATE, REAR
main32117-12040i200911
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21020i200911-201010
TOYOTA
sub35035-28010
main35035-28010i200911
AISIN
sub35035-12070
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i200911
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i200911
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i200911
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i200911
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21060i200911-201010
T=10.690-10.699,TOYOTA
sub35321-28060
main35321-21070i200911-201010
T=10.700-10.709,TOYOTA
sub35321-28070
main35321-21080i200911-201010
T=10.710-10.720,TOYOTA
sub35321-28080
main35321-21090i200911-201010
T=10.721-10.730,TOYOTA
sub35321-28090
main35321-21100i200911-201010
T=10.731-10.740,TOYOTA
sub35321-28100
main35321-28060i200911
T=10.715,MARK 1,AISIN
main35321-28070i200911
T=10.715,MARK 2,AISIN
main35321-28080i200911
T=10.715,MARK 3,AISIN
main35321-28090i200911
T=10.715,MARK 4,AISIN
main35321-28100i200911
T=10.715,MARK 5,AISIN
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21060i200911-201010
T=10.690-10.699,TOYOTA
sub35322-28060
main35322-21070i200911-201010
T=10.700-10.709,TOYOTA
sub35322-28070
main35322-21080i200911-201010
T=10.710-10.720,TOYOTA
sub35322-28080
main35322-21090i200911-201010
T=10.721-10.730,TOYOTA
sub35322-28090
main35322-21100i200911-201010
T=10.731-10.740,TOYOTA
sub35322-28100
main35322-28060i200911
T=10.715,MARK 1,AISIN
main35322-28070i200911
T=10.715,MARK 2,AISIN
main35322-28080i200911
T=10.715,MARK 3,AISIN
main35322-28090i200911
T=10.715,MARK 4,AISIN
main35322-28100i200911
T=10.715,MARK 5,AISIN
35370SHAFT ASSY, STATOR
main35370-21020i200911-201005
TOYOTA
sub35370-28010
main35370-28010i201005-201010
TOYOTA
sub35370-12110
main35370-28010i200911
AISIN
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200911

15 parts on this diagram · 1 diagram in section
