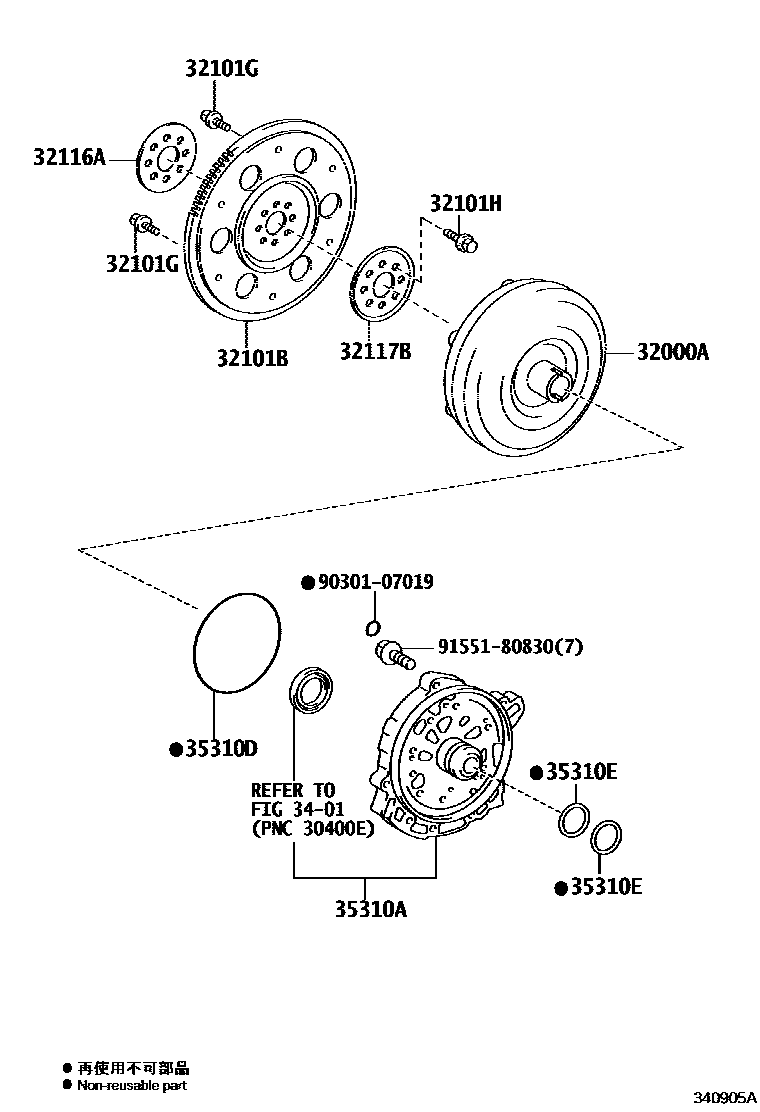

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-28180iZGE21201212-201606

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28050iZGE21201212-201606

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iZGE21201212-201606

*9-1.25PX12.4-7.3,BLACK

main90119-09025iZGE21201212-201606

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZGE21201212-201606

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZGE21201212-201606

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZGE21201212-201606

3401

35310APUMP ASSY, FRONT OIL

main35310-28030iZGE21201212-201303

sub35310-28031

main35310-28031iZGE21201303-201606

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iZGE21201212-201606

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-28020iZGE21201212-201606

9030107019

main90301-07019

9155180830

main91551-80830

12 parts on this diagram · 1 diagram in section
