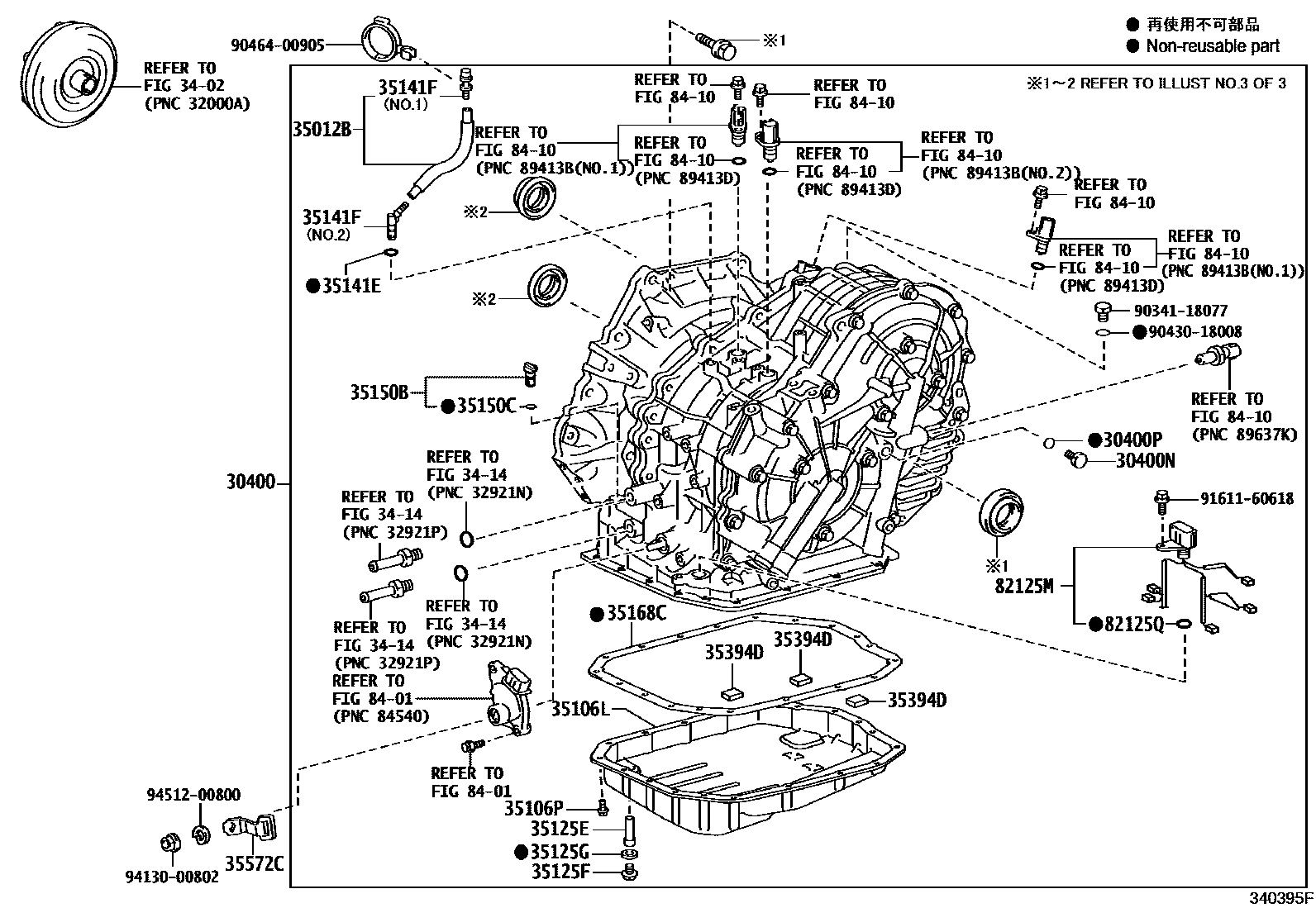

TRANSAXLE ASSY(CVT)

0001 1K111 0002 1K111 0003 1K111

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-20030iZGE21¥419,000201212-201606

K111

30400NPLUG, REFILL(CVT)

main90341-18077iZGE21¥190201212-201606

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZGE21¥110201212-201606

3402

3414

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main3510A-44012iZGE21¥1,060201212-201606

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-20031iZGE21¥7,700201212-201508

sub35106-20032¥6,400

sub35125-44071¥260

main35106-20032iZGE21¥6,400201508-201606

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iZGE21¥80201212-201606

35125ETUBE, OVERFLOW(CVT)

main35125-44070iZGE21¥310201212-201504

sub35125-44071¥260

main35125-44071iZGE21¥260201505-201606

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZGE21¥190201212-201606

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZGE21¥90201212-201606

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iZGE21¥170201212-201511

main90301-06021iZGE21¥140201512-201606

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iZGE21¥220201212-201606

NO.1

main90930-03164iZGE21¥360201212-201606

NO.2

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iZGE21¥280201212-201606

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZGE21¥140201212-201606

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-20010iZGE21¥920201212-201606

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iZGE21¥360201212-201606

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-42030iZGE21¥930201212-201606

82125MWIRE, TRANSMISSION

main82125-44020iZGE21¥1,900201212-201606

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iZGE21¥170201212-201606

8401

8410

9034118077

main90341-18077¥190

9043018008

main90430-18008¥110

9046400905

main90464-00905¥230

9161160618

main91611-60618¥120

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80
