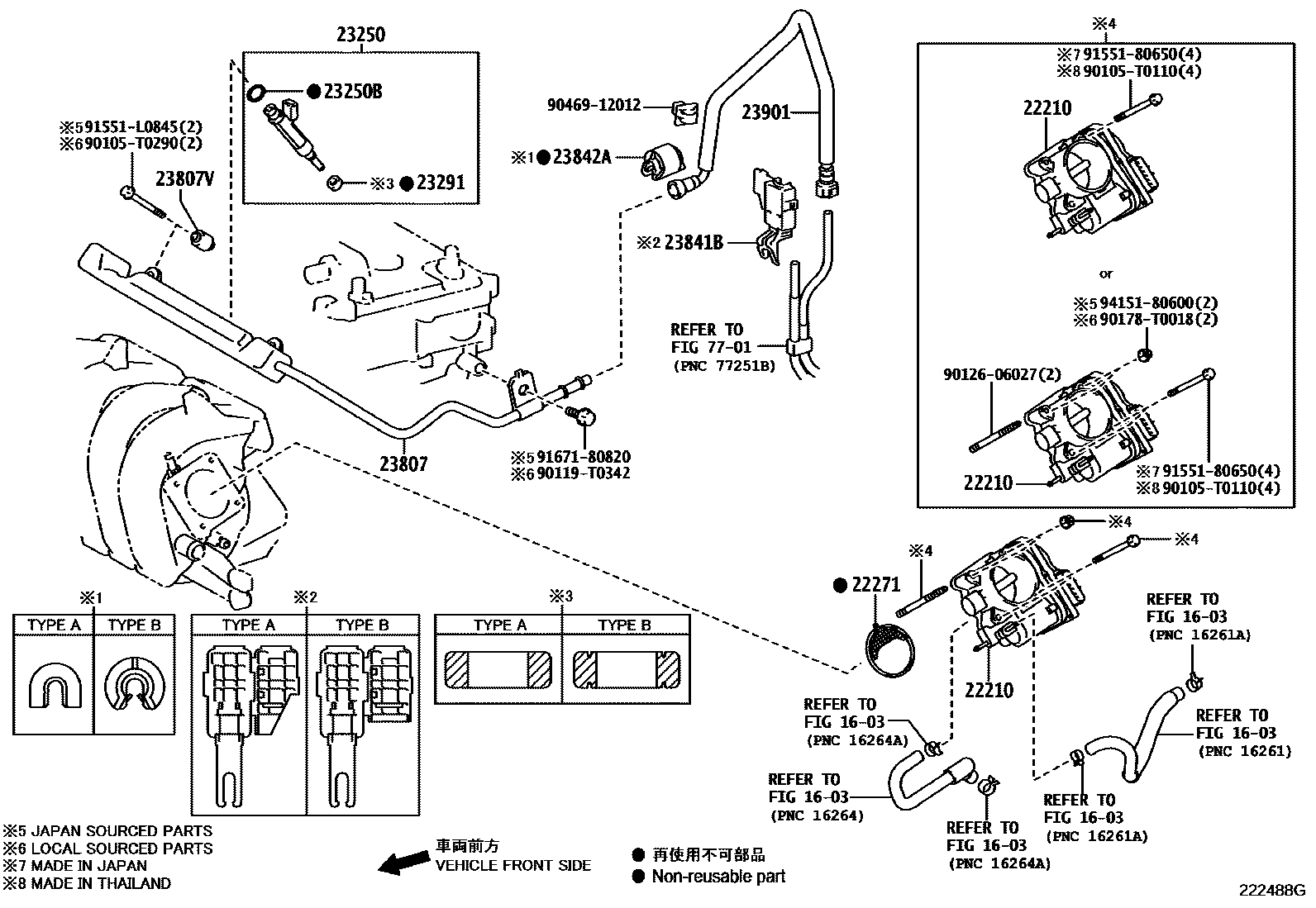

FUEL INJECTION SYSTEM
1603
22210BODY ASSY, THROTTLE
(L)
(J)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23291INSULATOR, INJECTOR VIBRATION
(L)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
(J)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23901TUBE SUB-ASSY, FUEL
7701
90105T0110
main90105-T0110
90105T0290
main90105-T0290
90119T0342
main90119-T0342
9012606027
main90126-06027
90178T0018
main90178-T0018
9046912012
main90469-12012
9155180650
main91551-80650
91551L0845
main91551-L0845
9167180820
main91671-80820
9415180600
main94151-80600
22 parts on this diagram · 1 diagram in section
