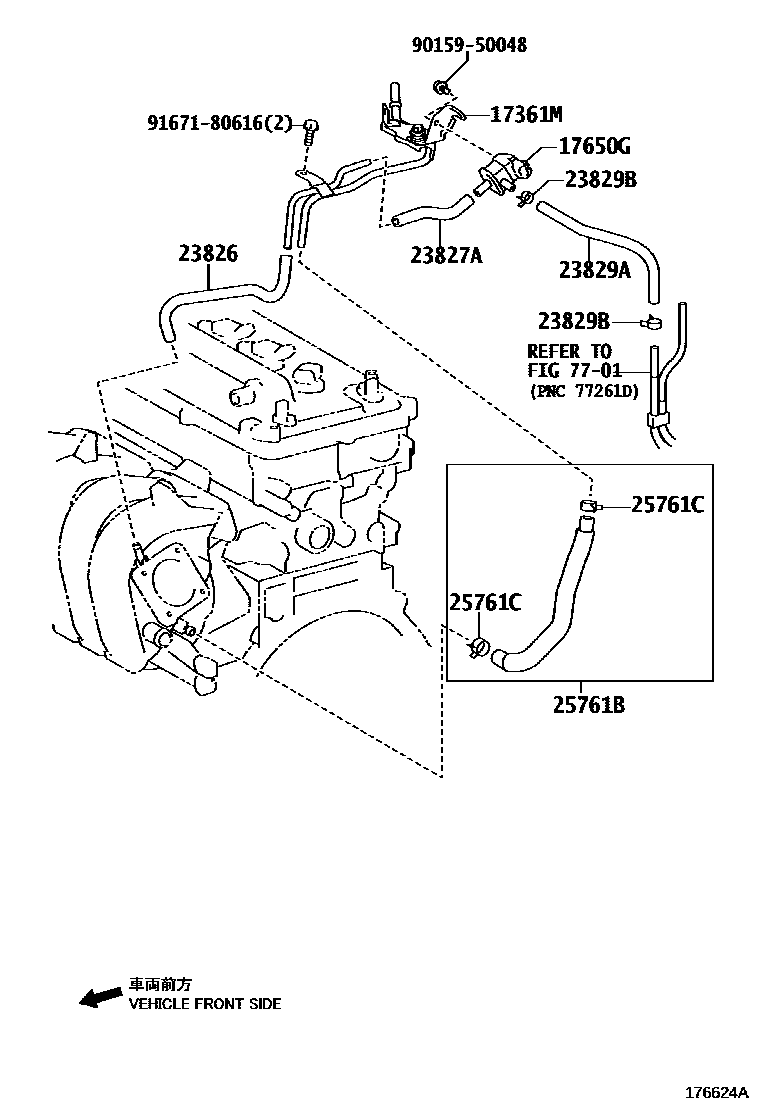

VACUUM PIPING

0001 1 0002 1

17361MTUBE, AIR

main17361-37011i3ZRFE..ZGE21200911-201212

main17361-37040i3ZRFE..ZGE21201212-201401

sub17361-37070

main17361-37070i3ZRFE..ZGE21201401-201606

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i3ZRFE..ZGE21200911-201606

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T130i3ZRFE..ZGE21201401

(L)

main23826-37021i3ZRFE..ZGE21200911-201212

main23826-37190i3ZRFE..ZGE21201212-201401

main23826-37190i3ZRFE..ZGE21201401

(J)

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i3ZRFE..ZGE21200911-201212

main23827-37060i3ZRFE..ZGE21201212-201606

23829AHOSE, FUEL VAPOR FEED

main23826-0T070i3ZRFE..ZGE21200911-201212

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51100i3ZRFE..ZGE21200911-201212

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-37011i3ZRFE..ZGE21200911-201212

main25761-37080i3ZRFE..ZGE21201212

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500i3ZRFE..ZGE21200911-201212

7701

9015950048

main90159-50048

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section
