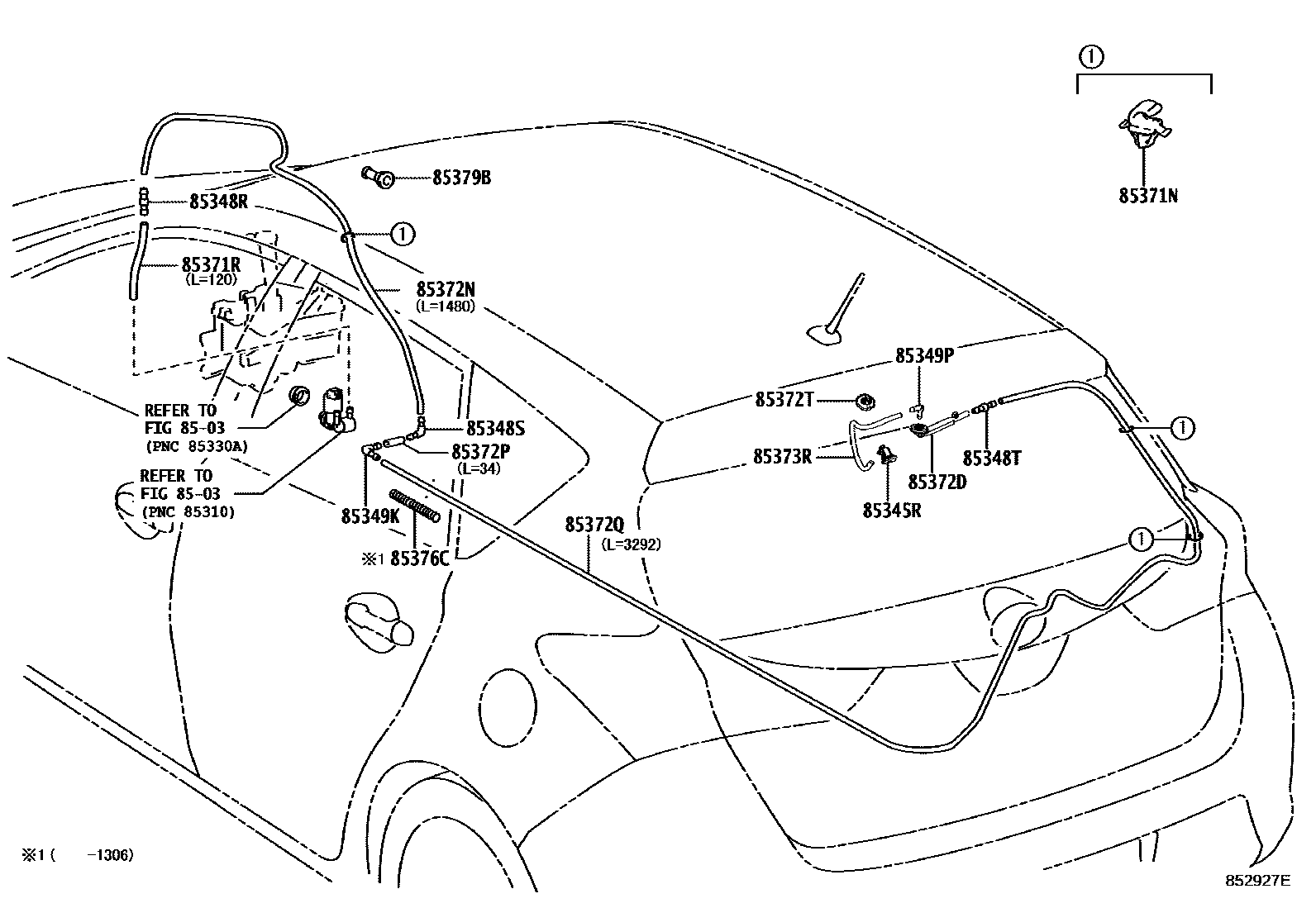

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
*318:REFER ILLUST.
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
*318:REFER ILLUST.
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
*318:REFER ILLUST.
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
*318:REFER ILLUST.
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=270)
85376CSPRING, WASHER HOSE
85379BGROMMET, WASHER, A
17 parts on this diagram · 1 diagram in section
