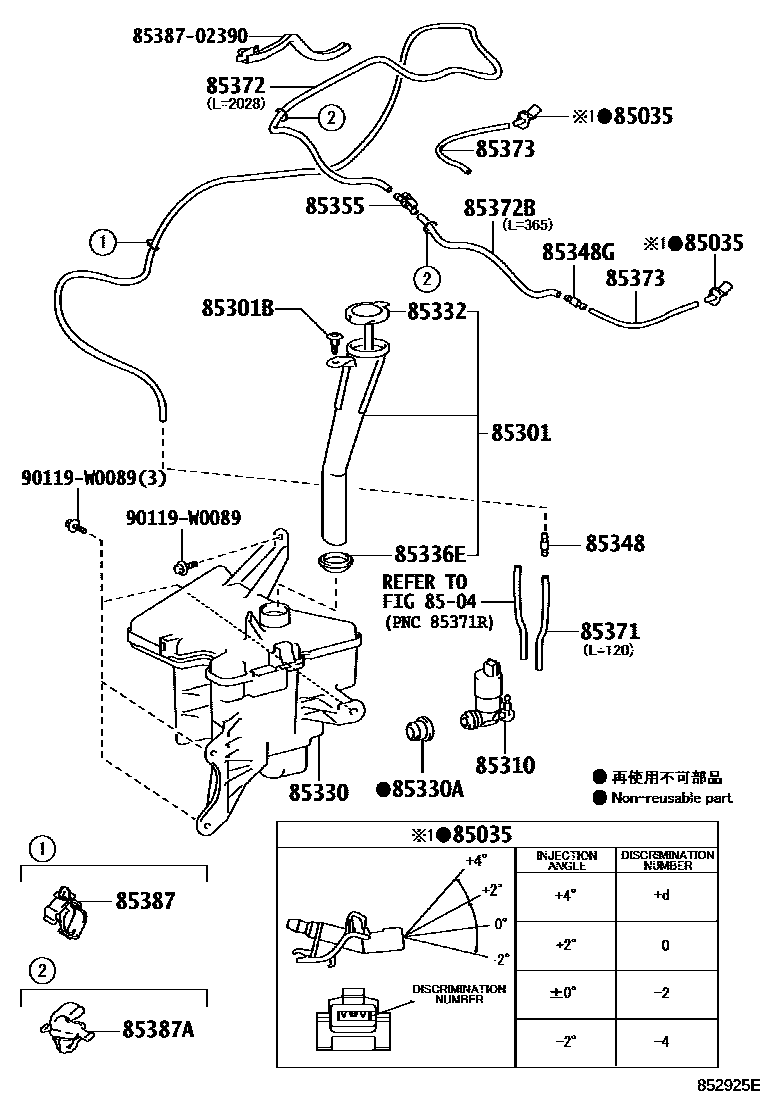

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +4
8504
85301INLET SUB-ASSY, WASHER
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
*318:REFER ILLUST.
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
*318:REFER ILLUST.
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
*318:REFER ILLUST.
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=170
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
8538702390CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-02390
90119W0089
main90119-W0089
20 parts on this diagram · 1 diagram in section
