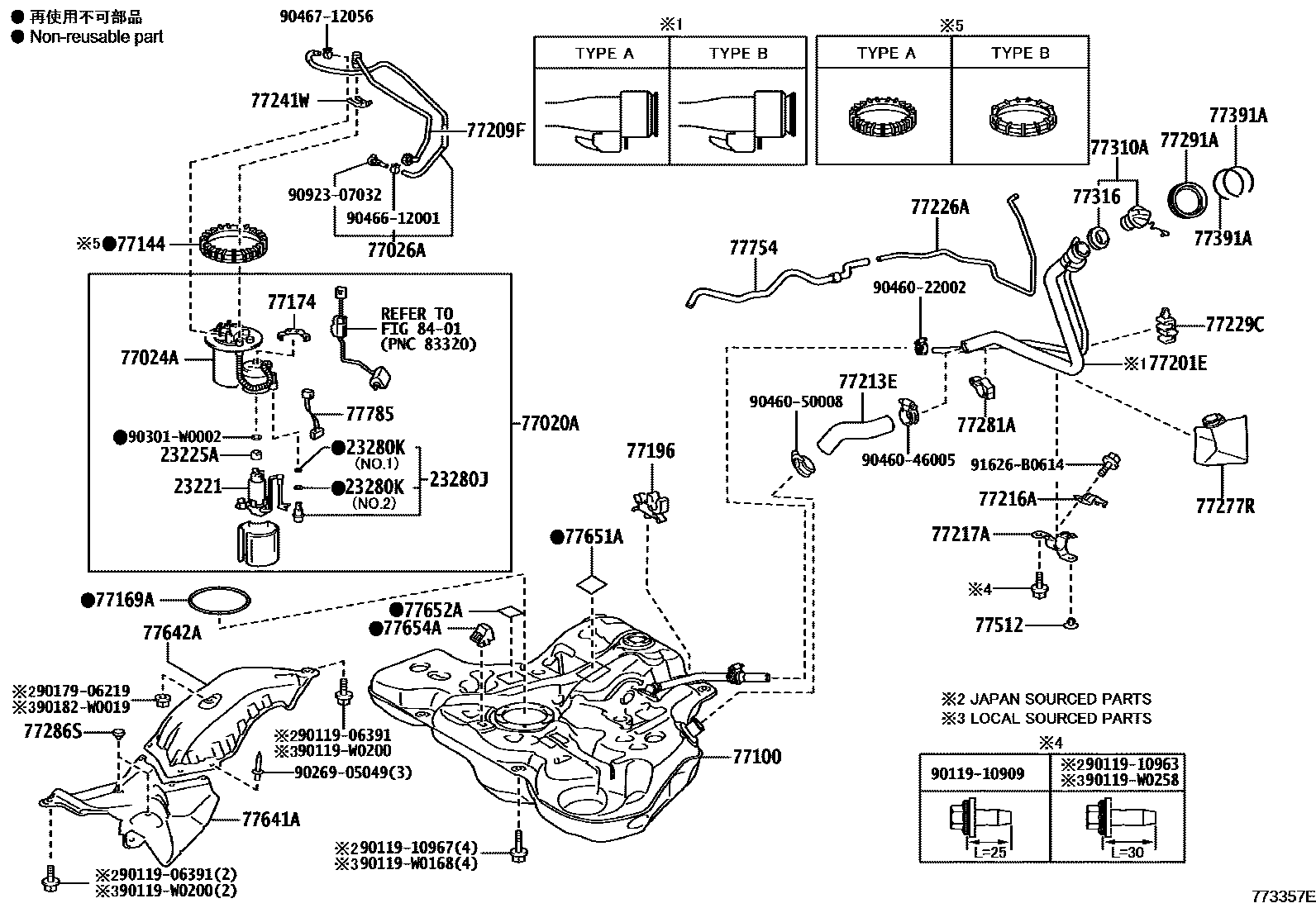

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
(L)
(J)
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
PNC 77201E=TYPE B
PNC 77201E=TYPE A
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
PNC 77201E=TYPE B
PNC 77201E=TYPE A
77226ATUBE, FUEL TANK BREATHER, NO.6
PNC 77201E=TYPE B
PNC 77201E=TYPE A
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77654ACUSHION, FUEL TANK, NO.4
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785HARNESS, FUEL PUMP
(L)
(J)
8401
9011906391
main90119-06391
9011910909
main90119-10909
9011910963
main90119-10963
9011910967
main90119-10967
90119W0168
main90119-W0168
90119W0200
main90119-W0200
90119W0258
main90119-W0258
9017906219
main90179-06219
90182W0019
main90182-W0019
9026905049
main90269-05049
90301W0002
main90301-W0002
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046612001
main90466-12001
9046712056
main90467-12056
9092307032
main90923-07032
91626B0614
main91626-B0614
54 parts on this diagram · 3 diagrams in section
