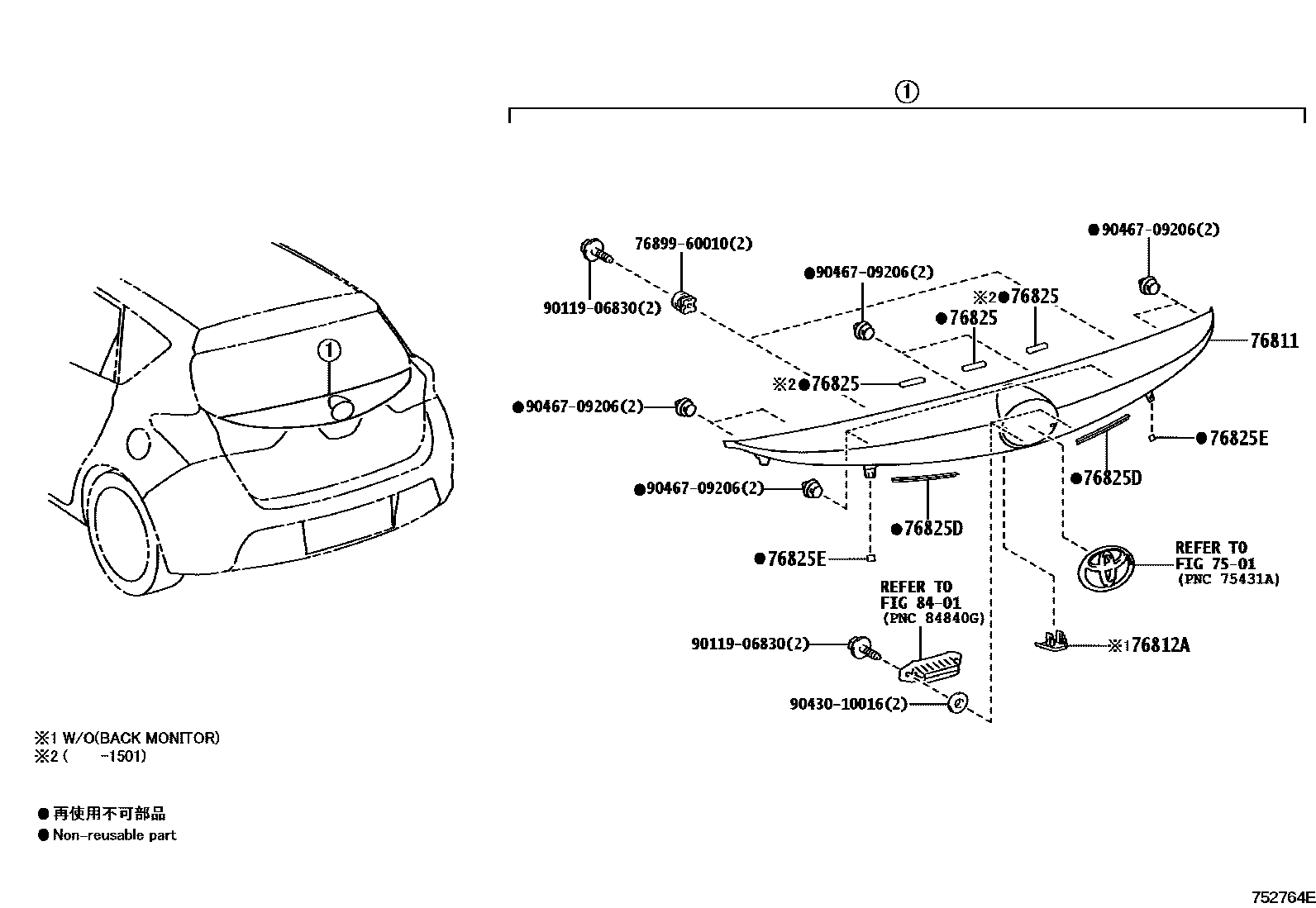

REAR MOULDING

0001 1 0002 1

7501

76811GARNISH, BACK DOOR, OUTSIDE

main76811-02941iZRE181201210-201505

main76811-02945iZRE181201505

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-02040iZRE181201505

main76812-02070iZRE181201210-201505

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-02140iZRE181201210-201505

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76821-02190iZRE181201210-201505

main76821-02210iZRE181201505

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76822-02060iZRE181201210-201505

8401

7689960010PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-60010

9011906830

main90119-06830

9043010016

main90430-10016

9046709206

main90467-09206

11 parts on this diagram · 2 diagrams in section
