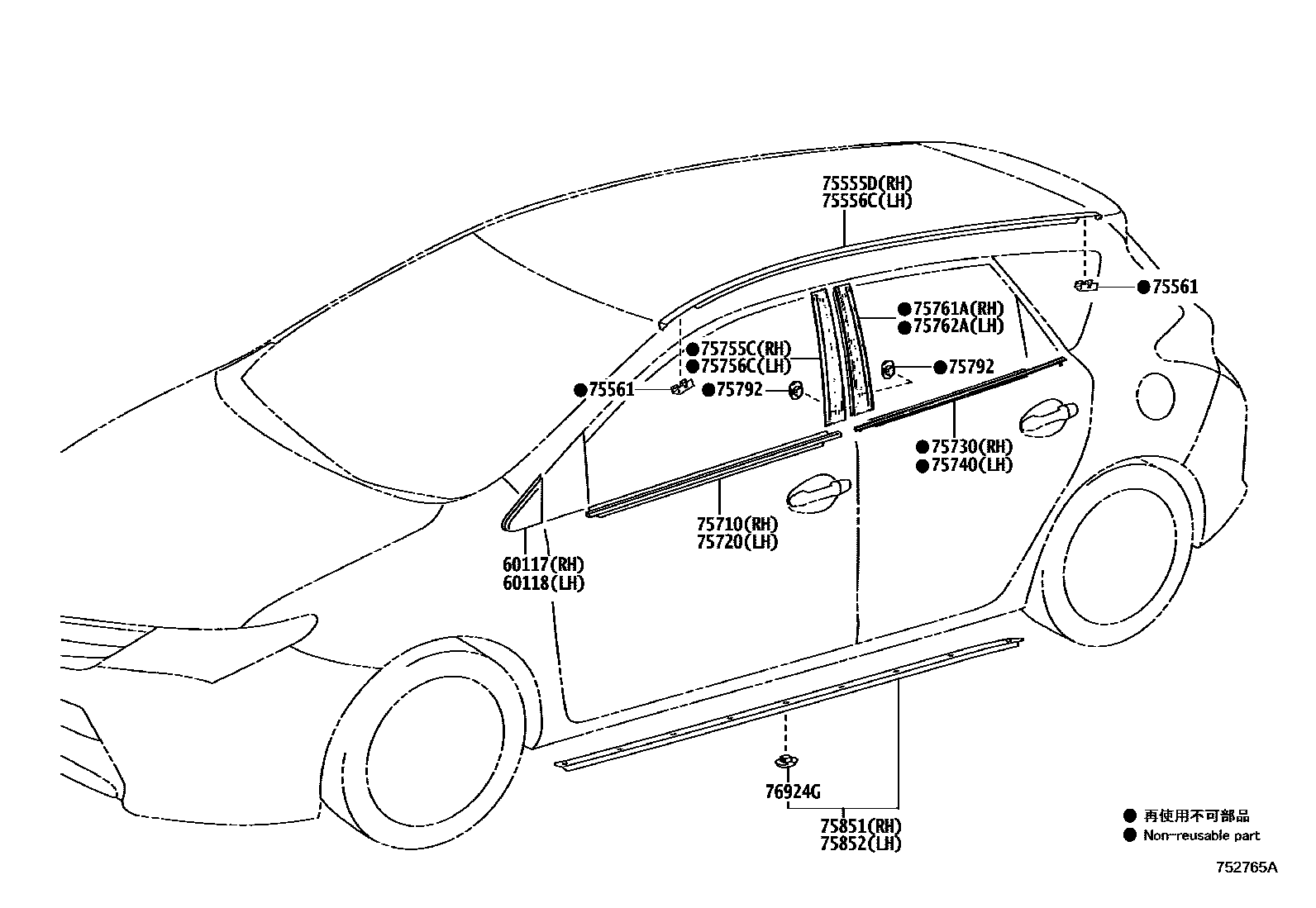

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02110iZRE181201210-201505

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02110iZRE181201210-201505

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02080iZRE181201210-201505

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-02080iZRE181201210-201505

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iZRE181201210-201505

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02290iZRE181201210-201505

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02290iZRE181201210-201505

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02270iZRE181201210-201505

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02270iZRE181201210-201505

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-02010iZRE181201210-201505

main75755-02020iZRE181201505-201509

sub75755-02030

main75755-02030iZRE181201510

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-02010iZRE181201210-201505

main75756-02020iZRE181201505-201509

sub75756-02100

main75756-02100iZRE181201510

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-02010iZRE181201210-201505

NO PAINT REQ.

main75761-02020iZRE181201505-201509

NO PAINT REQ.

sub75761-02110

main75761-02110iZRE181201510

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-02010iZRE181201210-201505

NO PAINT REQ.

main75762-02020iZRE181201505-201509

NO PAINT REQ.

sub75762-02110

main75762-02110iZRE181201510

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iZRE181201210-201505

75851MOULDING, ROCKER PANEL, RH

main75851-02081iZRE181201210-201505

75852MOULDING, ROCKER PANEL, LH

main75852-02081iZRE181201210-201505

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12030iZRE181201210-201505

17 parts on this diagram · 1 diagram in section
