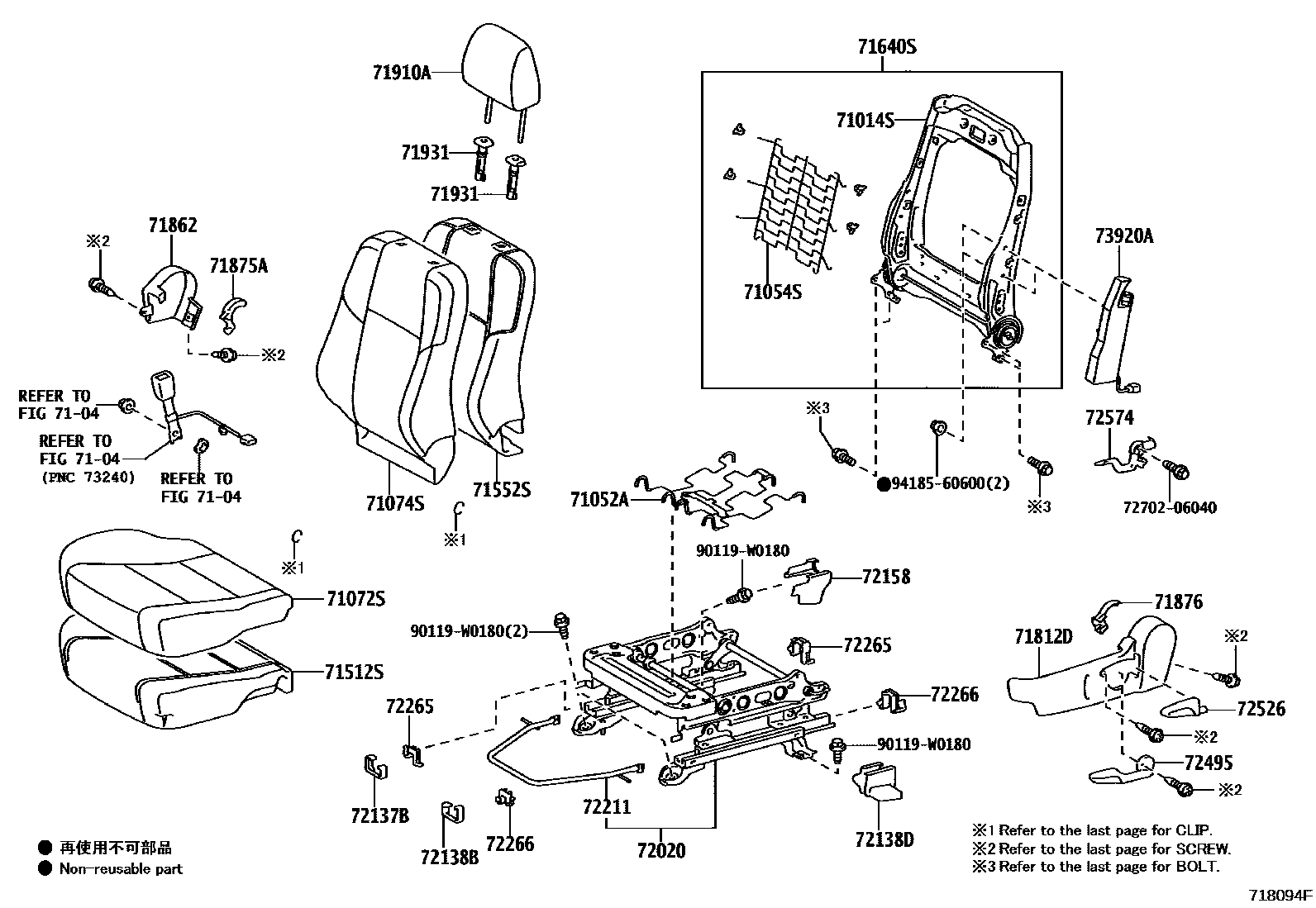

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
GRAY,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
GRAY,TRIM2#,W(ZIPPER)
GREY,TRIM2#,W/O(ZIPPER)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71812DSHIELD, FRONT SEAT CUSHION, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
71876COVER, RECLINING ADJUSTER INSIDE, LH
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
72020ADJUSTER ASSY, FRONT SEAT, LH
72137BCOVER, SEAT TRACK, RH
BLACK,TRIM2#
EU BLACK,TRIM2#
72138BCOVER, SEAT TRACK, LH
72138DCOVER, SEAT TRACK, OUTER, LH
72158COVER, SEAT TRACK BRACKET, INNER LH
72211HANDLE, SEAT TRACK ADJUSTING
72265COVER, SEAT TRACK UPPER RAIL, RH
BLACK,TRIM2#,REAR
EU BLACK,TRIM2#,REAR
72266COVER, SEAT TRACK UPPER RAIL, LH
BLACK,TRIM2#,FRONT
EU BLACK,TRIM2#,FRONT
72495HANDLE, VERTICAL ADJUSTING, LH
BLACK,TRIM2#
EU BLACK,TRIM2#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
72574LEVER, RECLINING CONTROL, LH
73920AAIRBAG ASSY, FRONT SEAT, LH
7270206040BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-06040
90119W0180
main90119-W0180
9418560600
main94185-60600
30 parts on this diagram · 3 diagrams in section
