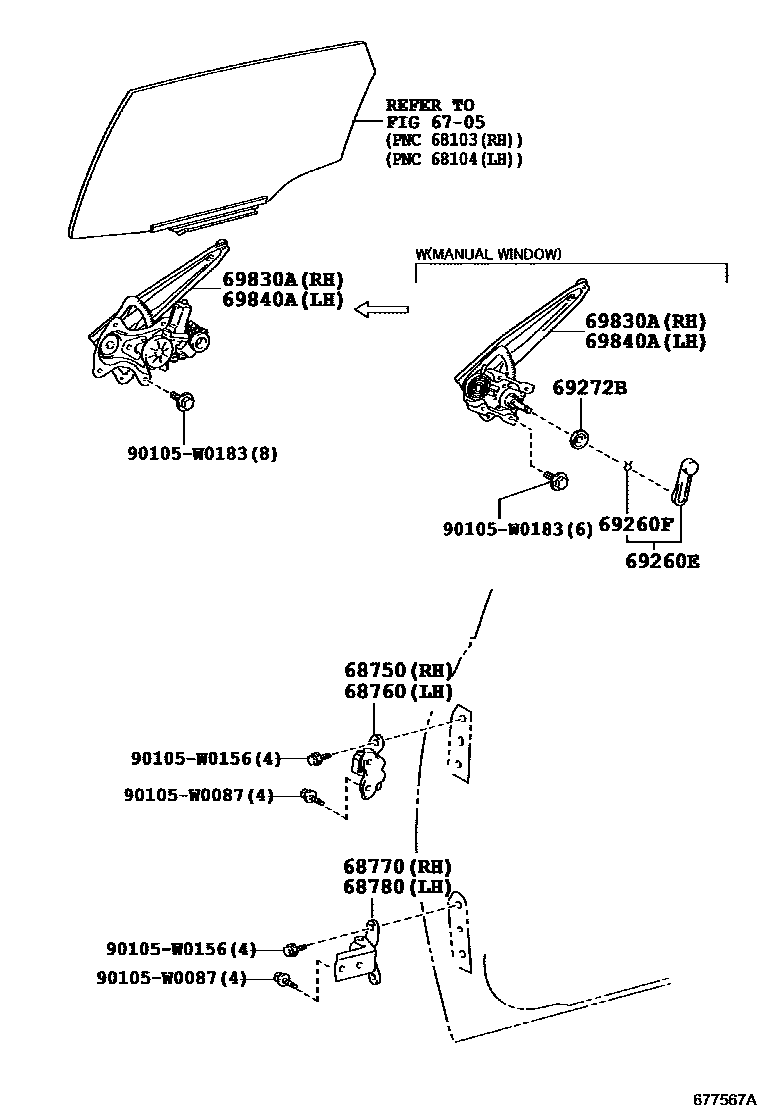

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iZRE181201210-201505

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iZRE181201210-201505

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0H010iZRE181201210-201505

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0H010iZRE181201210-201505

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-C0iZRE181201210-201504

BLACK,TRIM2#

sub69260-02020

sub69260-02021

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iZRE181201210-201505

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022iZRE181201210-201505

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02210iZRE181201210-201505

main69830-02430iZRE181201505

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02210iZRE181201210-201505

main69840-02430iZRE181201505

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

13 parts on this diagram · 1 diagram in section
