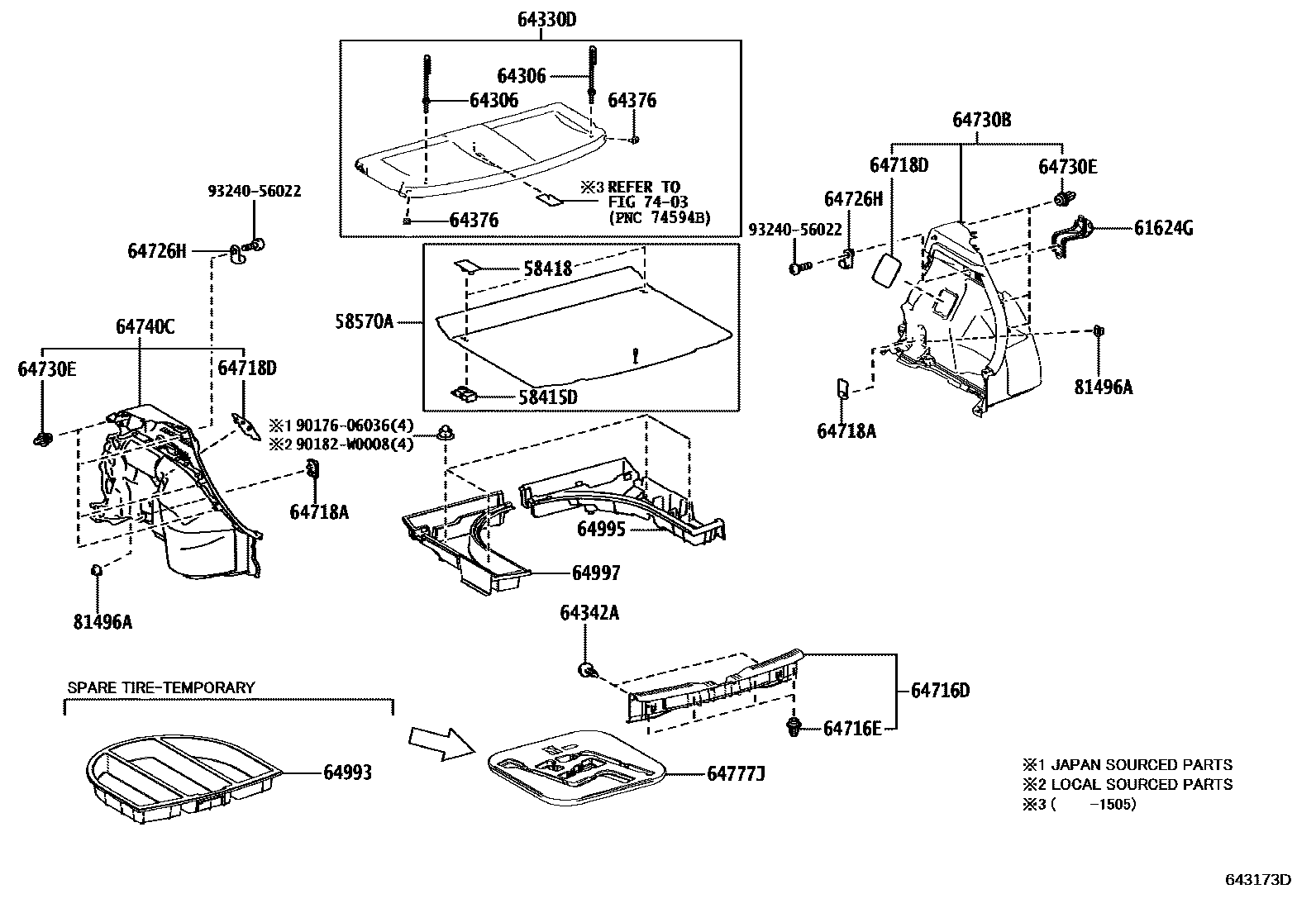

DECK BOARD & DECK TRIM COVER
58415DBRACKET, DECK BOARD SUPPORT
58418BRACKET, DECK BOARD, NO.1
58570AMAT ASSY, REAR FLOOR
BLACK,TRIM2#
61624GBRACKET, DECK SIDE TRIM UPPER, RH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64342ACLIP
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM2#
EU BLACK,TRIM2#
64718DCOVER, DECK TRIM SERVICE HOLE
64726HHOOK, DECK SIDE TRIM, NO.2
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
64777JCUSHION, SPARE WHEEL
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
7403
81496AGUIDE, REAR COMBINATION LAMP
9017606036
90182W0008
main90182-W0008
9324056022
25 parts on this diagram · 1 diagram in section
