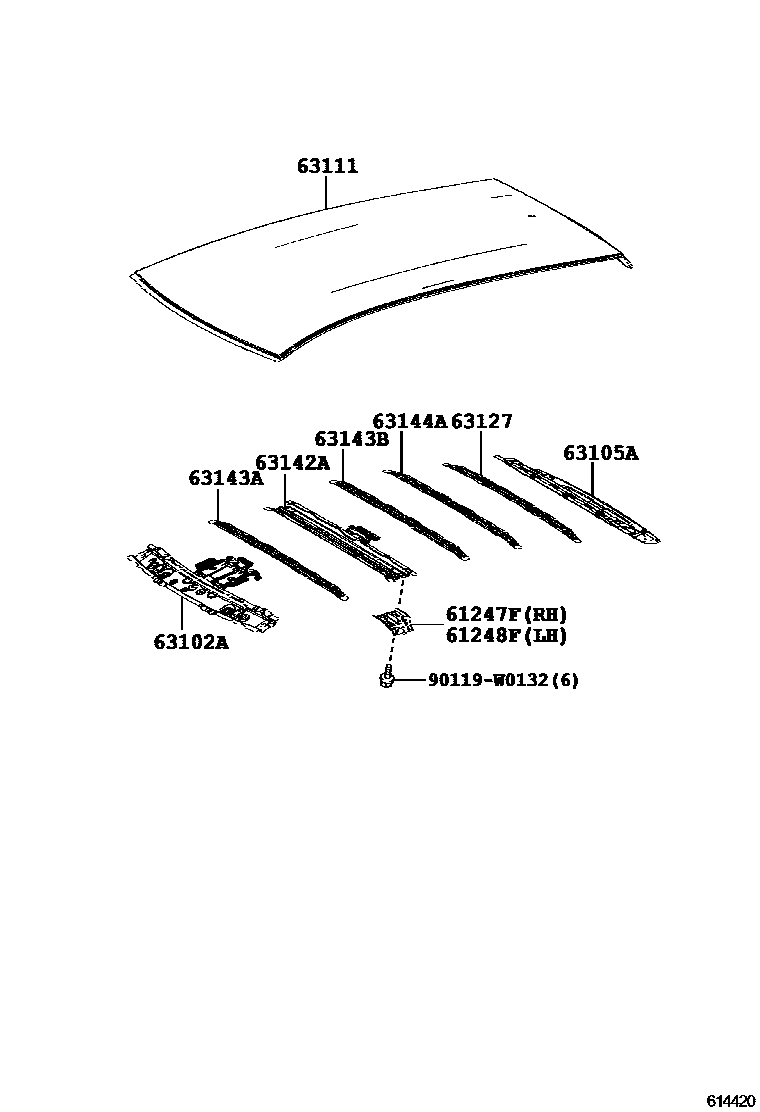

ROOF PANEL & BACK WINDOW GLASS

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-02060iZRE181201210-201505

61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH

main61247-02060iZRE181201210-201505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02220iZRE181201210-201505

main63102-02240iZRE181201505

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-02050iZRE181201210-201505

sub63105-12300

63111PANEL, ROOF

main63111-02380iZRE181201210-201408

sub63111-02560

main63111-02560iZRE181201409-201505

63127REINFORCEMENT, ROOF PANEL, NO.5

main63126-02030iZRE181201210-201505

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-02070iZRE181201210-201505

63143AREINFORCEMENT, ROOF PANEL

main63143-02100iZRE181201210-201505

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63148-02050iZRE181201210-201505

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-02130iZRE181201210-201505

90119W0132

main90119-W0132

11 parts on this diagram · 1 diagram in section
