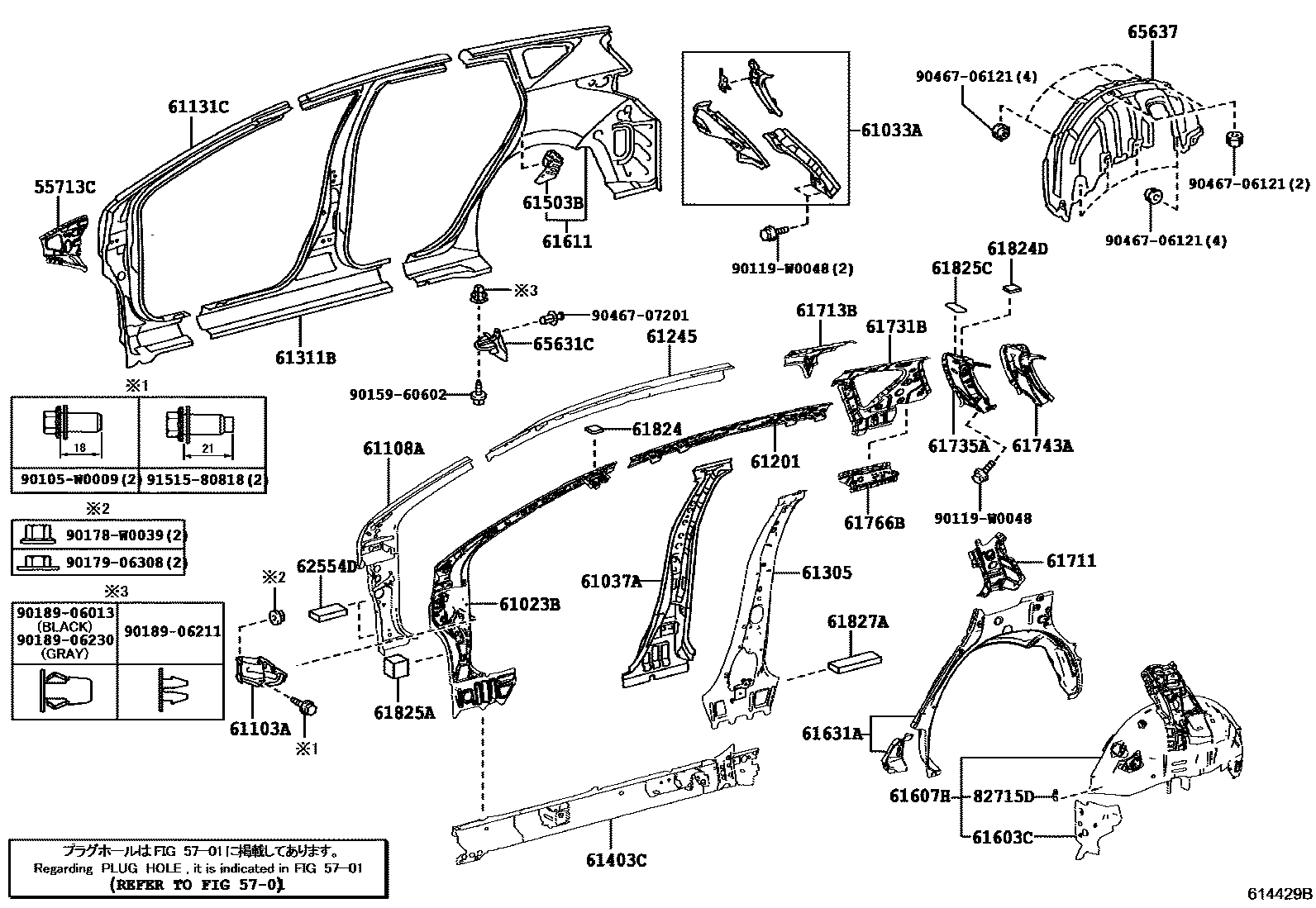

SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61824PLATE, NOISE CONTROL, NO.1
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
61827APLATE, NOISE CONTROL, NO.4
62554DPAD, FRONT PILLER
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65637LINER, REAR WHEEL HOUSE, RH
82715DBRACKET, WIRING HARNESS CLAMP
90105W0009
main90105-W0009
90119W0048
main90119-W0048
9015960602
main90159-60602
90178W0039
main90178-W0039
9017906308
main90179-06308
9018906013
main90189-06013
9018906211
main90189-06211
9018906230
main90189-06230
9046706121
main90467-06121
9046707201
main90467-07201
9151580818
main91515-80818
44 parts on this diagram · 2 diagrams in section
