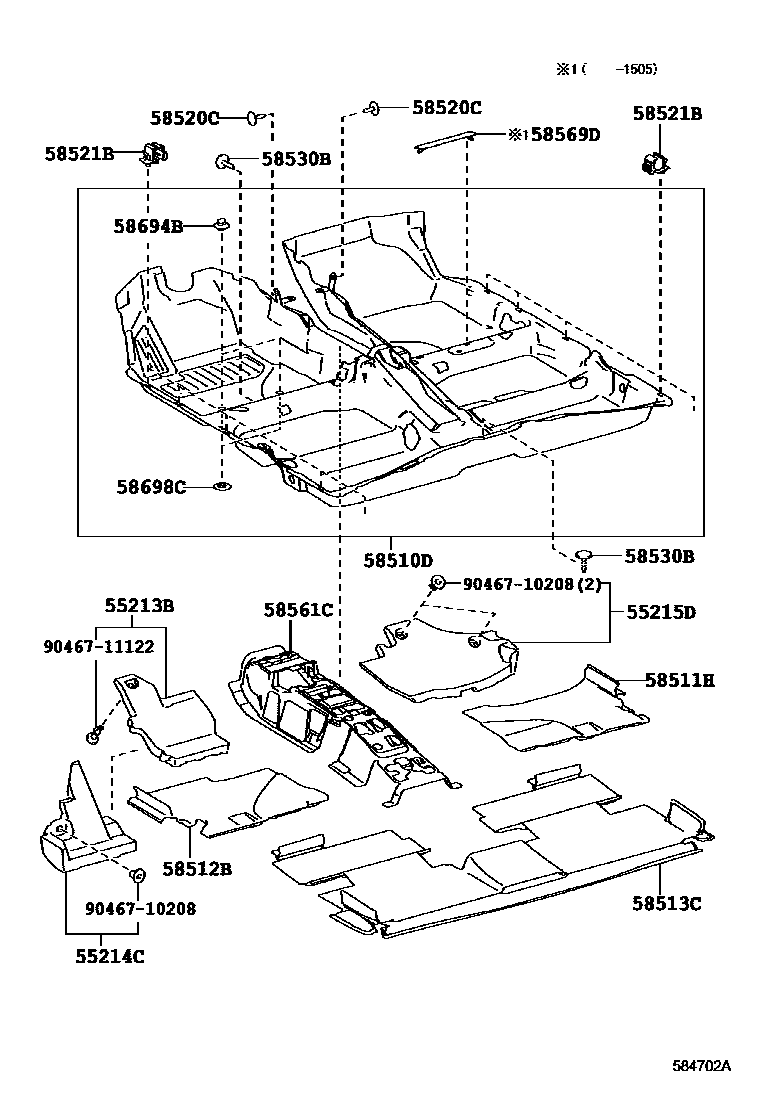

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02230iZRE181201210-201505

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02010iZRE181201210-201505

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02010iZRE181201210-201505

58510DCARPET ASSY, FLOOR, FRONT

main58510-02F80-C0iZRE181201210-201505

BLACK,TRIM2#

sub58510-02G30

main58510-02G30-C0iZRE181201505

BLACK,TRIM2#

58511HMAT, FLOOR, FRONT RH

main58511-02080iZRE181201210-201505

58512BMAT, FLOOR, FRONT LH

main58512-02060iZRE181201210-201505

58513CMAT, FLOOR, FRONT CENTER

main58513-02070iZRE181201210-201505

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-C0iZRE181201210-201505

BLACK

sub90467-W0006¥130

58521BHOOK, FLOOR CARPET

main58521-02110iZRE181201210-201505

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iZRE181201610

BLACK

sub90467-07049¥90

main90467-07049-C0iZRE181201210-201610

BLACK

sub90467-07049¥90

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02250iZRE181201210-201505

main58561-02270iZRE181201505

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02030-B0iZRE181201210-201505

DK.GRAY

58694BPLATE, MAT SET, UPPER

main58694-76010iZRE181¥200201210-201505

58698CPLATE, MAT SET, LOWER

main58698-76010iZRE181¥190201210-201505

9046710208

main90467-10208¥90

9046711122

main90467-11122¥100

16 parts on this diagram · 2 diagrams in section
