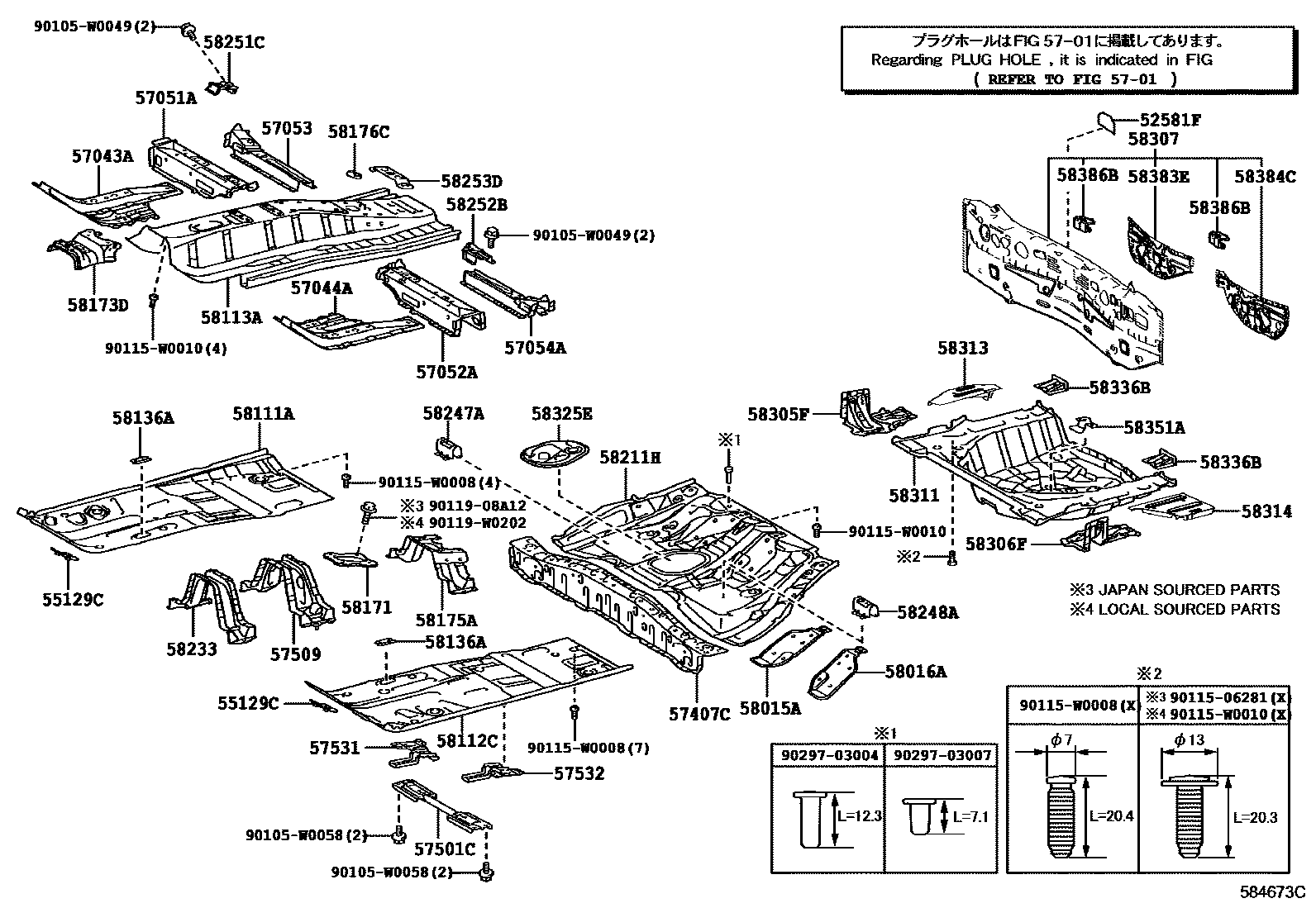

FLOOR PAN & LOWER BACK PANEL
52581FPROTECTOR, REAR BUMPER
55129CCOVER, DASH PANEL HOLE
RH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58173DBRACKET, COMPUTER MOUNTING, NO.4
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351ABRACKET, SPARE WHEEL CARRIER
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
90105W0049
90105W0058
9011506281
90115W0008
90115W0010
9011908A12
90119W0202
main90119-W0202
9029703004
9029703007
52 parts on this diagram · 2 diagrams in section
