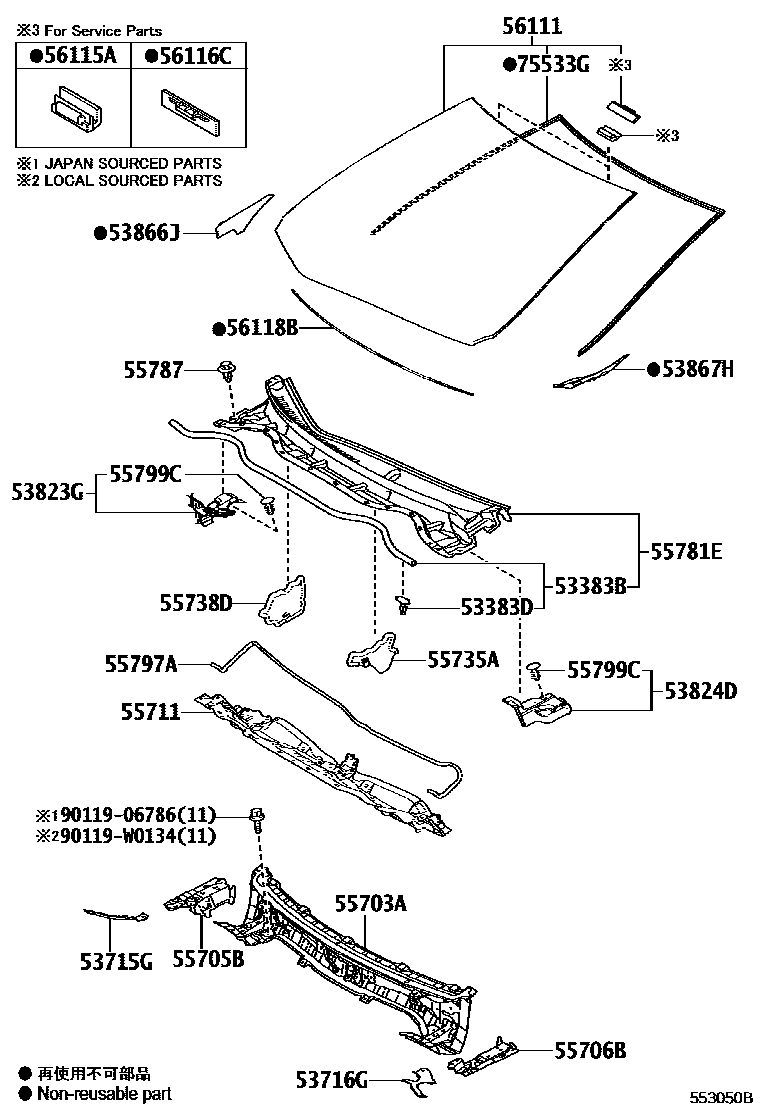

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
53716GEXTENSION, FRONT FENDER APRON, REAR LH
53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735APLATE, WATER GUARD, LH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55787CLIP, COWL VENTILATOR LOUVER, INNER
55797ASEAL, COWL WATER EXTRACT
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
*D,L=1262.5
*D,L=1262.5,OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & WITH(HEATER)
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
90119W0134
main90119-W0134
25 parts on this diagram · 1 diagram in section
