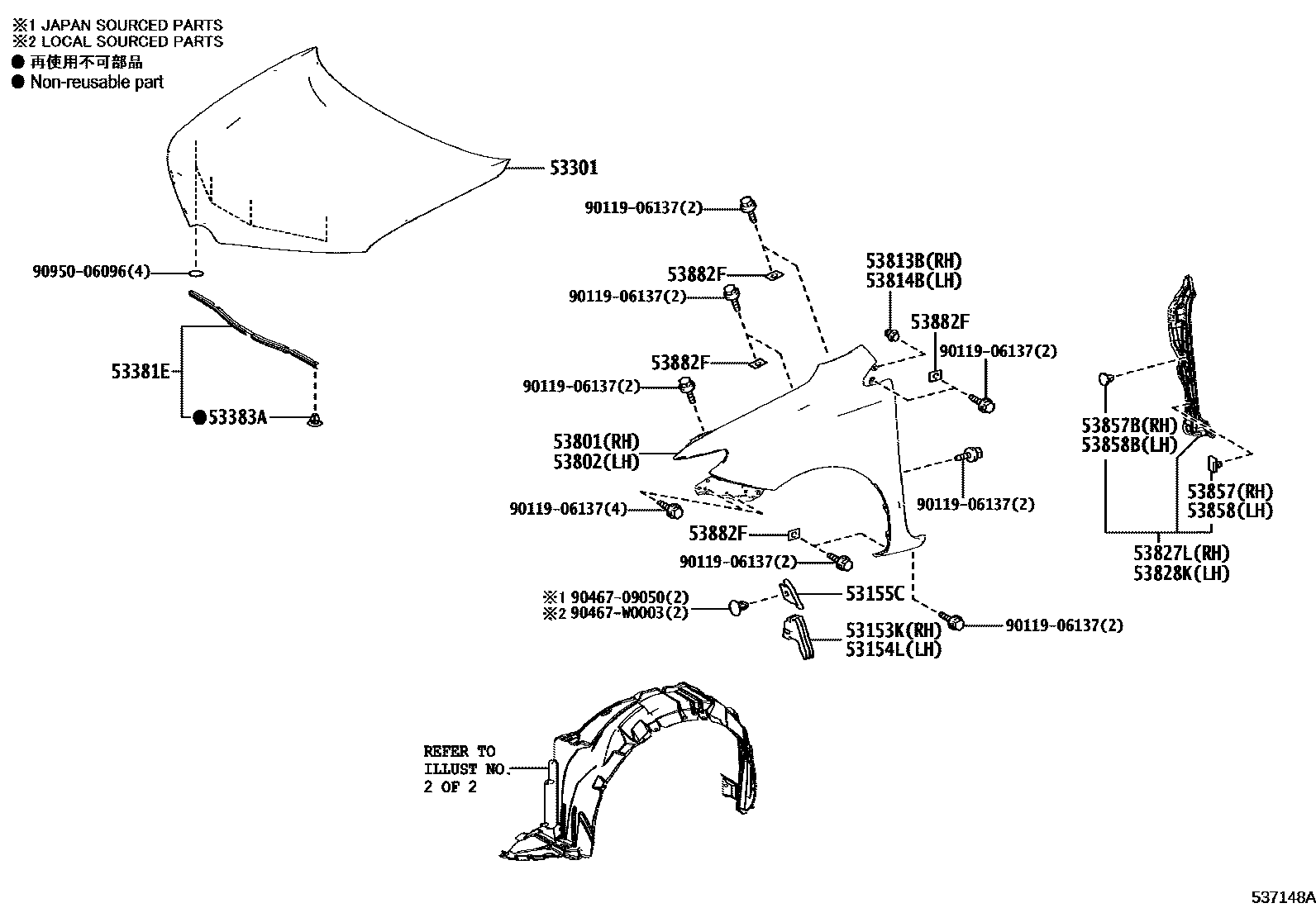

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02010iZRE181201210-201505

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02010iZRE181201210-201505

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-02030iZRE181201210-201505

53301HOOD SUB-ASSY

main53301-02260iZRE181201210-201505

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-02170iZRE181201210-201505

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011iZRE181201210-201505

53801FENDER SUB-ASSY, FRONT RH

main53811-02340iZRE181201210-201505

53802FENDER SUB-ASSY, FRONT LH

main53812-02340iZRE181201210-201505

53813BEXTENSION, FRONT FENDER, RH

main53813-48011iZRE181201210-201505

53814BEXTENSION, FRONT FENDER, LH

main53813-48011iZRE181201210-201505

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02170iZRE181201210-201505

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02160iZRE181201210-201505

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iZRE181201210-201505

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZRE181201210-201505

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iZRE181201210-201505

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZRE181201210-201505

53882FSEAL, FRONT FENDER

main53882-16030iZRE181201210-201505

9011906137

main90119-06137

9046709050

main90467-09050

90467W0003

main90467-W0003

9095006096

main90950-06096

21 parts on this diagram · 2 diagrams in section
