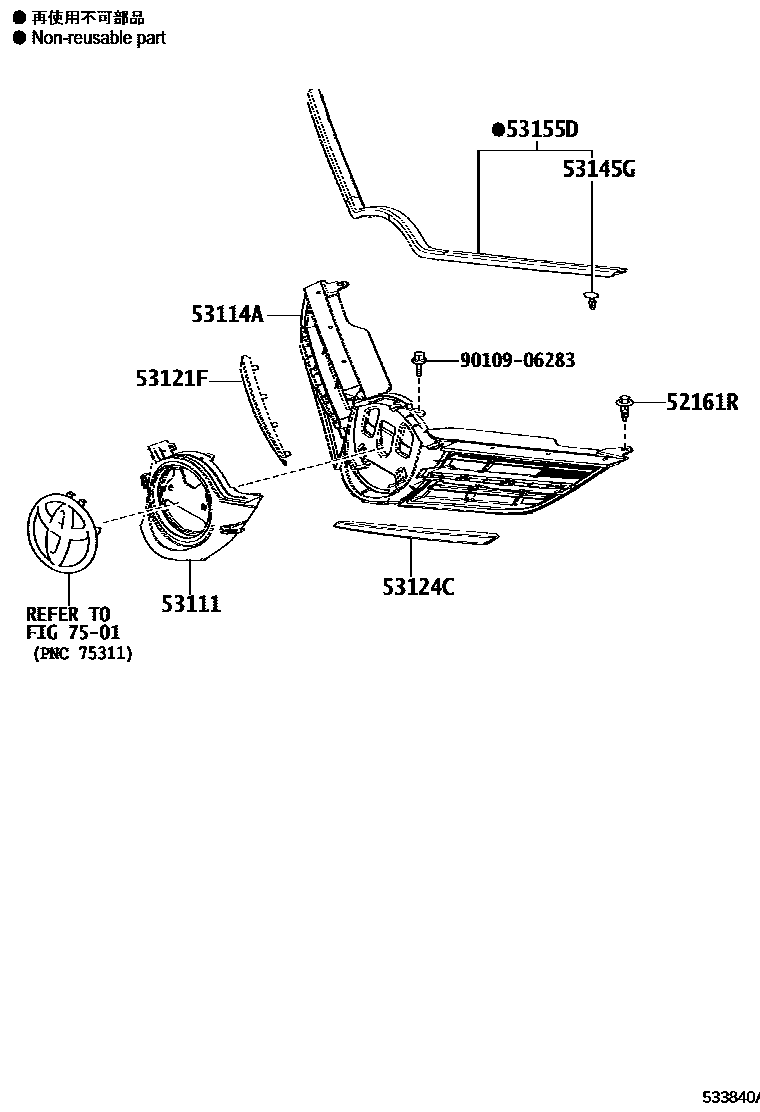

RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-02030iZRE181201210-201505

(L)

main52161-16010iZRE181201210-201505

(J)

sub52161-0K040

53111GRILLE, RADIATOR

main53111-02914iZRE181201210-201505

PAINT REQ.

main53111-02A50iZRE181201505

PLATED

53114AGRILLE, RADIATOR, INNER

main53114-02260iZRE181201210-201505

main53114-02380iZRE181201505

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02901iZRE181201210-201505

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02901iZRE181201210-201505

53145GCLIP, RADIATOR GRILLE

main53145-60030iZRE181201210-201505

53155DSEAL, RADIATOR GRILLE, NO.1

main53037-02010iZRE181201210-201505

main53037-02020iZRE181201505

7501

9010906283

main90109-06283

9 parts on this diagram · 2 diagrams in section
