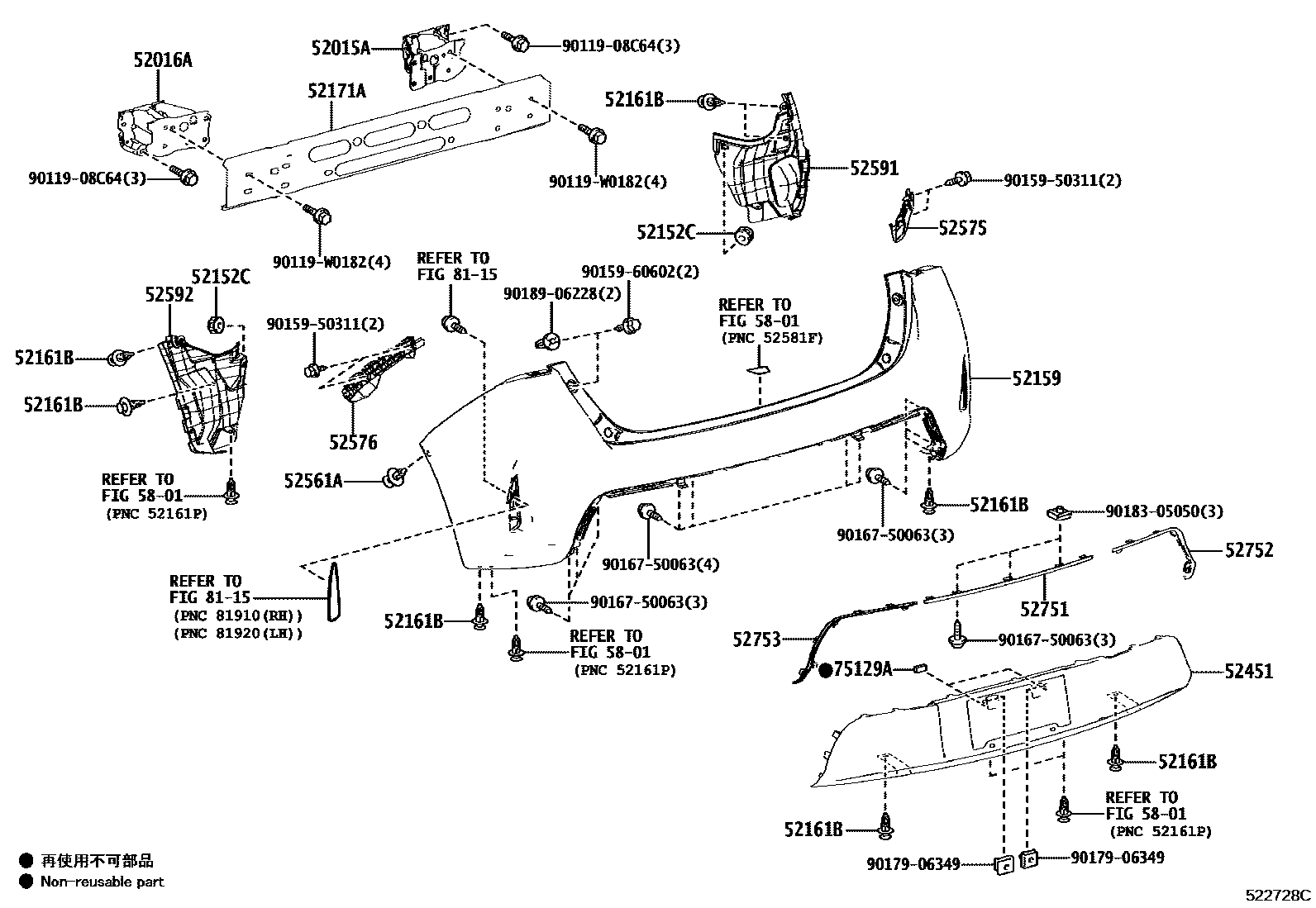

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02100iZRE181201210-201505

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-02090iZRE181201210-201505

52152CCLIP, REAR BUMPER SIDE

main90467-06206-C0iZRE181201210-201505

BLACK

52159COVER, REAR BUMPER

main52159-02997iZRE181¥30,800201210-201505

PAINT REQ.

main52159-0Z924iZRE181201505

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02030iZRE181¥140201210-201505

(L)

main52161-16010iZRE181¥120201210-201505

(J)

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-02170iZRE181201210-201505

52451GUARD, REAR BUMPER

main52453-02041iZRE181201210-201505

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05170iZRE181¥80201210-201505

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02090iZRE181201210-201505

sub52575-02091

main52575-02091iZRE181201505

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02090iZRE181201210-201505

sub52576-02091

main52576-02091iZRE181201505

52591SEAL, REAR BUMPER SIDE, RH

main52591-02240iZRE181201210-201505

52592SEAL, REAR BUMPER SIDE, LH

main52592-02200iZRE181201210-201505

52751MOULDING, REAR BUMPER

main52751-02040iZRE181201210-201505

main52751-02070iZRE181201505

52752MOULDING, REAR BUMPER SIDE, RH

main52752-02030iZRE181201210-201505

52753MOULDING, REAR BUMPER SIDE, LH

main52753-02030iZRE181201210-201505

5801

75129ACUSHION, REAR LICENCE PLATE

main75129-13020iZRE181¥80201210-201505

main75129-58010iZRE181¥320201505

8115

9011908C64

main90119-08C64¥90

90119W0182

main90119-W0182

9015950311

main90159-50311¥70

9015960602

main90159-60602¥60

9016750063

main90167-50063¥60

9017906349

main90179-06349¥180

9018305050

main90183-05050¥70

9018906228

main90189-06228¥70

26 parts on this diagram · 2 diagrams in section
