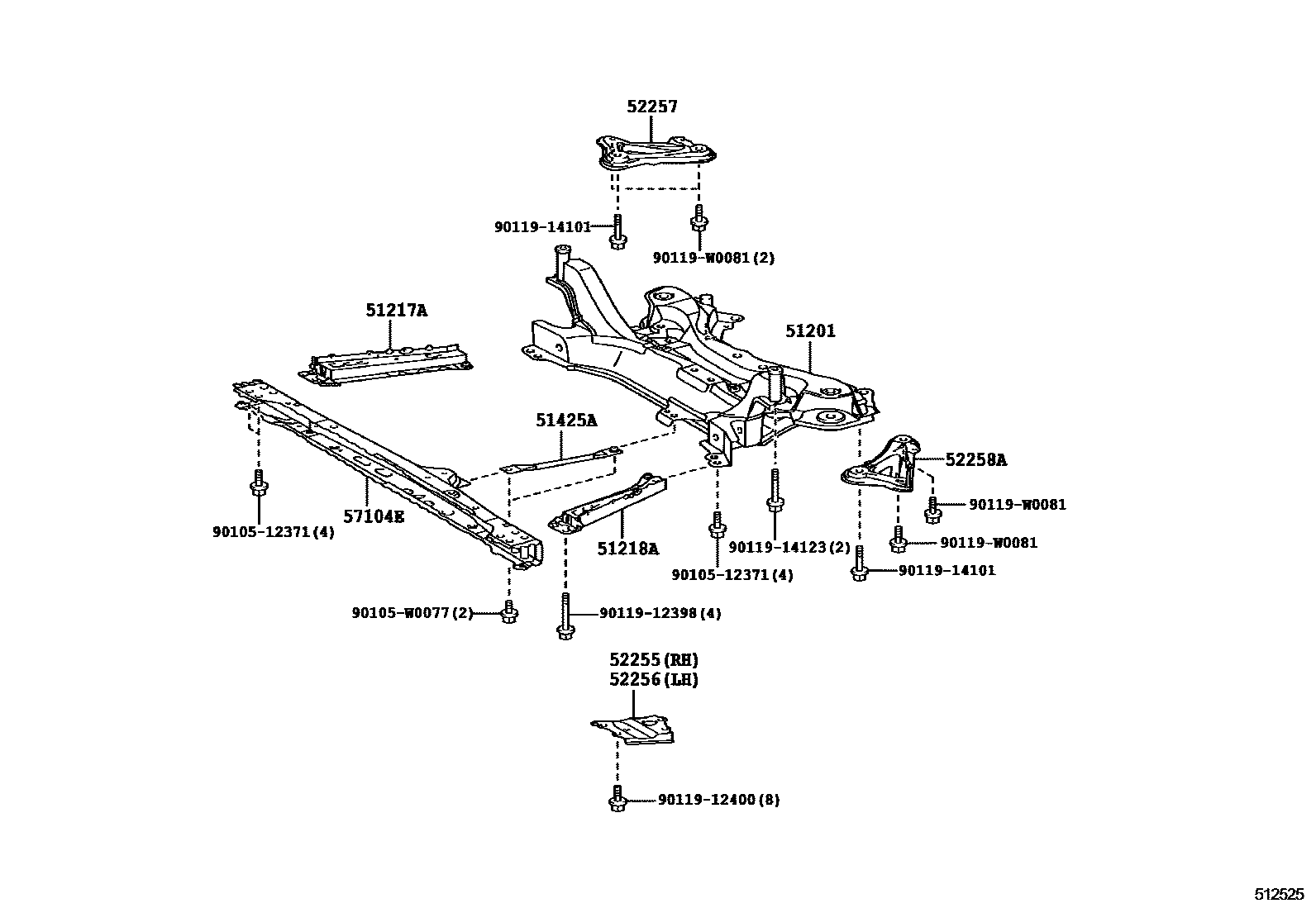

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02101iZRE181201210-201307

sub51201-02102

main51201-02102iZRE181201308-201505

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02010iZRE181201210-201505

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02010iZRE181201210-201505

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02010iZRE181201210-201505

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iZRE181201210-201505

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iZRE181201210-201505

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02060iZRE181201210-201505

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02060iZRE181201210-201505

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02230iZRE181201210-201505

sub57104-47020

9010512371

main90105-12371

90105W0077

main90105-W0077

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

16 parts on this diagram · 2 diagrams in section
