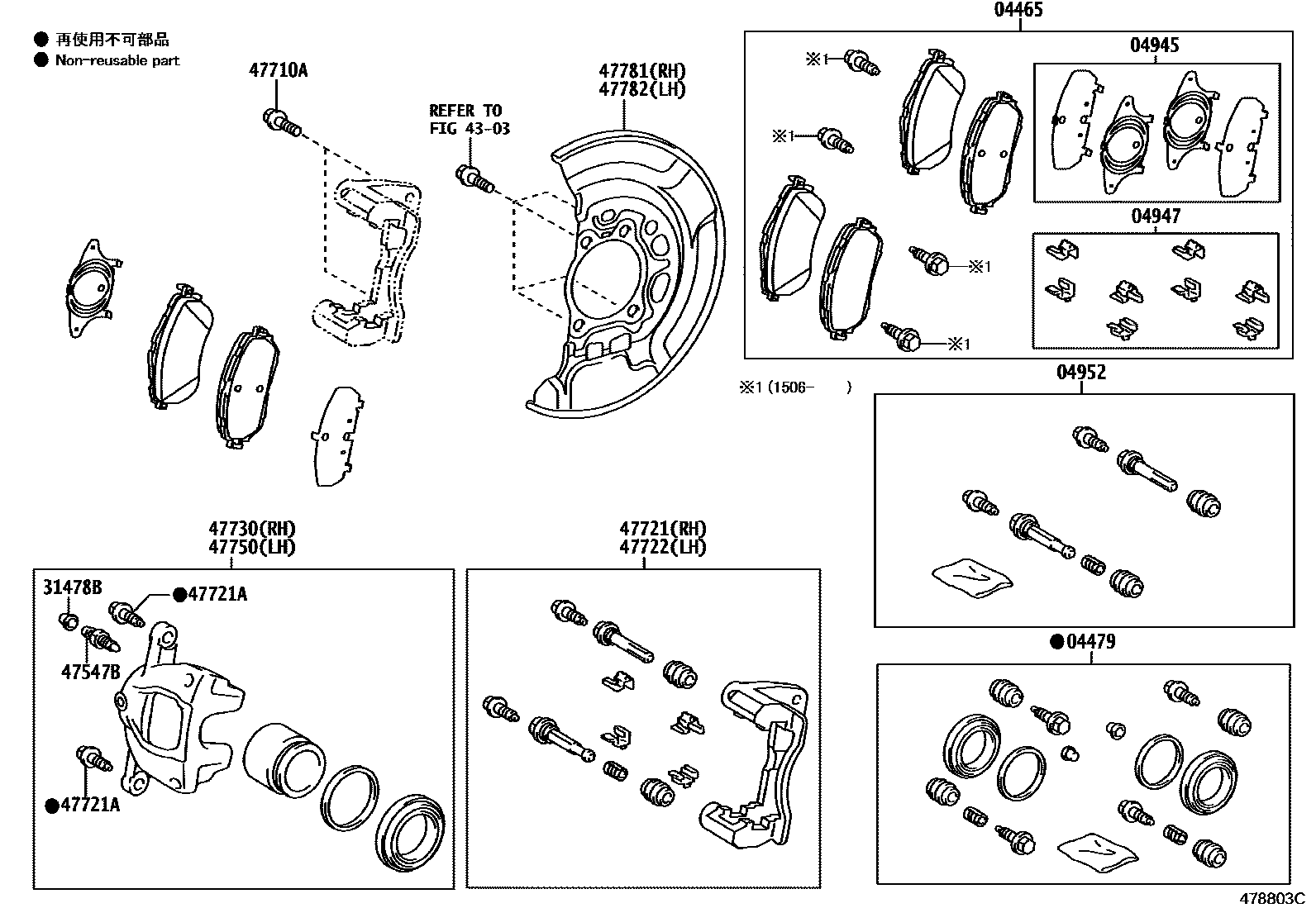

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02390iZRE181201210-201506

MARK TEXTAR T4146

sub04465-02391

main04465-02391iZRE181201506

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02320iZRE181201210-201505

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02210iZRE181201210-201505

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iZRE181201210-201505

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02310iZRE181201210-201702

sub04952-02311

main04952-02311iZRE181201702

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001iZRE181201210-201505

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iZRE181201210-201505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRE181201210-201505

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09540iZRE181201210-201702

sub47721-09541

main47721-09541iZRE181201702

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iZRE181201210-201505

sub47715-28060

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09240iZRE181201210-201702

sub47722-09241

main47722-09241iZRE181201702

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02510iZRE181201210-201505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02250iZRE181201210-201505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02200iZRE181201210-201505

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02200iZRE181201210-201505

16 parts on this diagram · 1 diagram in section
