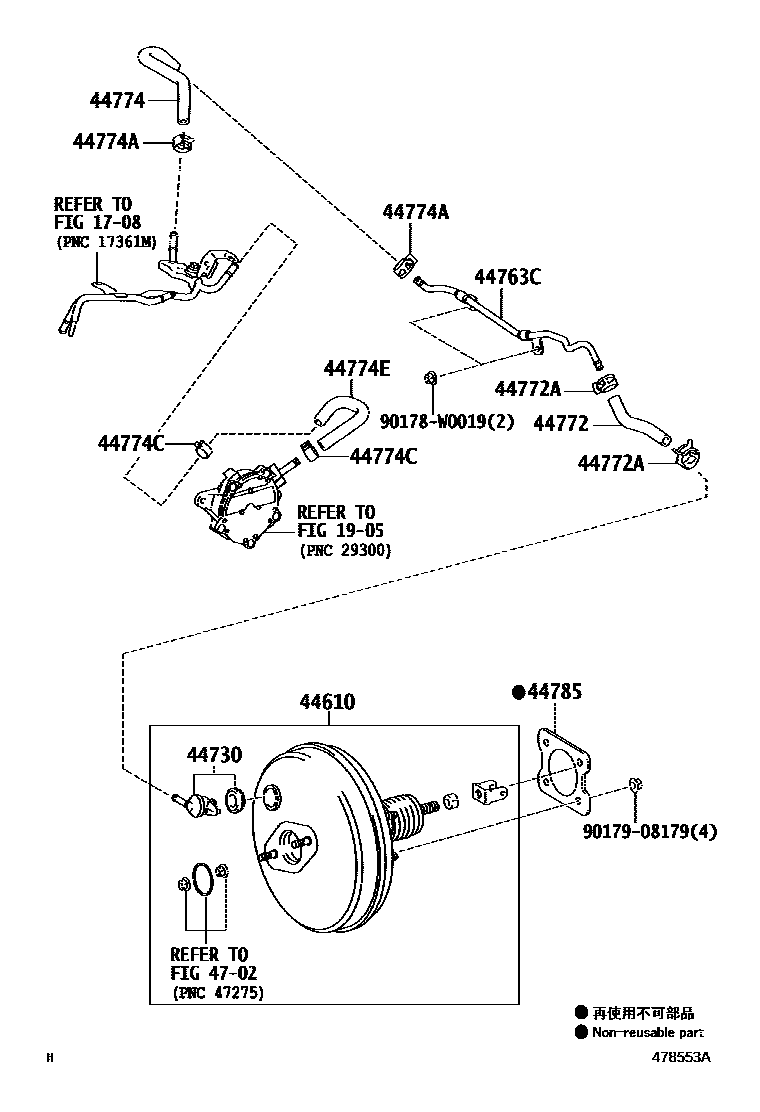

BRAKE BOOSTER & VACUUM TUBE

1708

1905

44610BOOSTER ASSY, BRAKE

main44610-09A50iZRE181201210-201505

sub44610-09D30

main44610-09D30iZRE181201505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iZRE181201210-201505

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iZRE181201210-201505

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02340iZRE181201712

main44772-12580iZRE181201210-201711

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iZRE181201210-201505

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02410iZRE181201712

main44774-12530iZRE181201210-201711

sub44774-02410

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iZRE181201210-201505

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iZRE181201210-201505

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-28320iZRE181201210-201505

44785GASKET, BRAKE BOOSTER

main44785-05020iZRE181201210-201505

4702

90178W0019

main90178-W0019

9017908179

main90179-08179

15 parts on this diagram · 1 diagram in section
