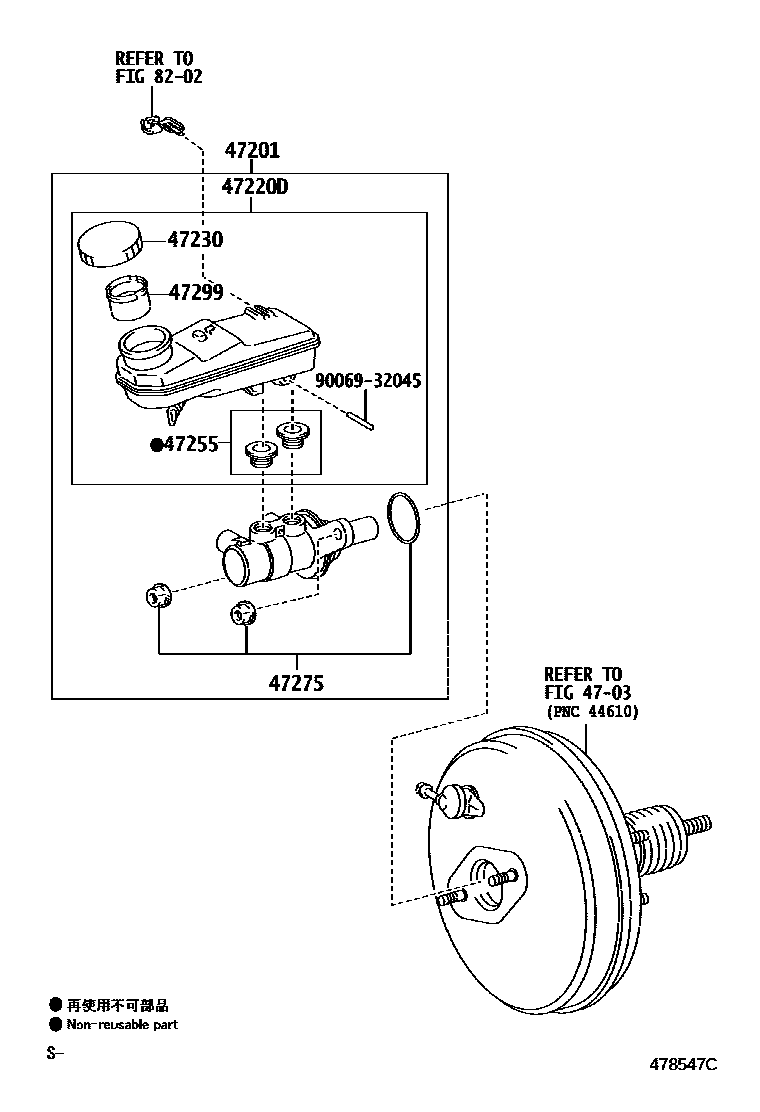

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09720iZRE181201210-201505

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09090iZRE181201505

main47220-09180iZRE181201210-201505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iZRE181201210-201505

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZRE181201210-201505

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZRE181201210-201505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZRE181201210-201505

8202

9006932045

main90069-32045

9 parts on this diagram · 1 diagram in section
