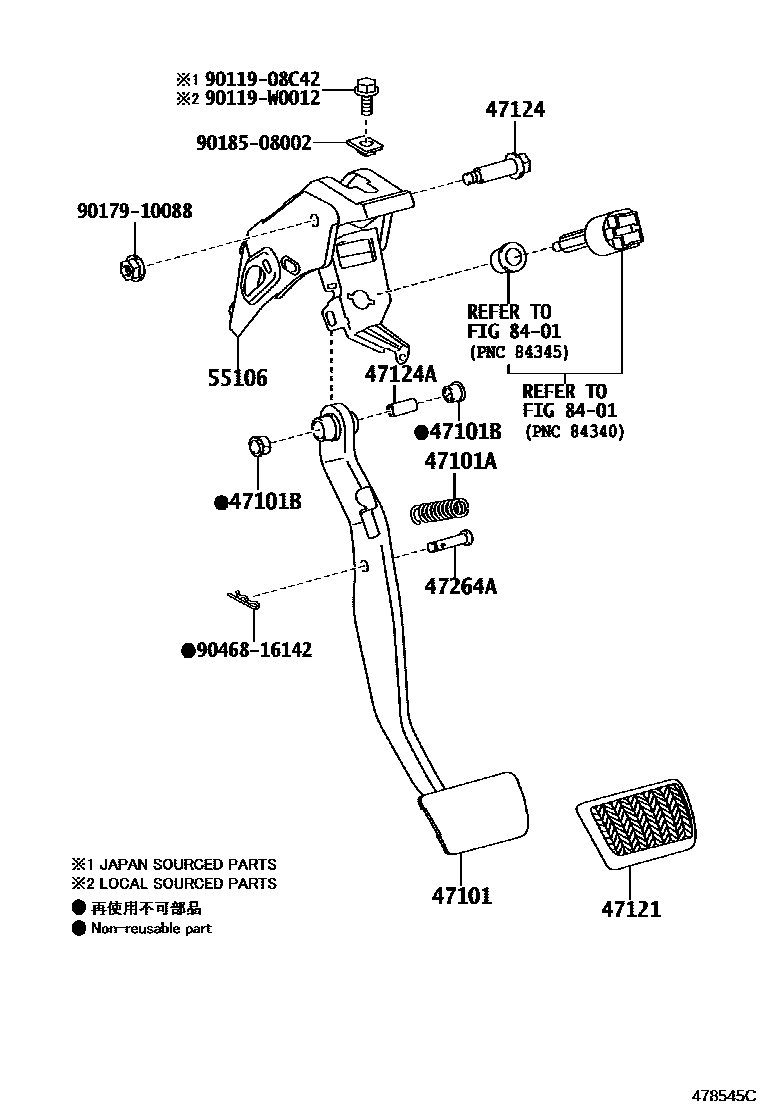

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02450iZRE181..6F201210-201505

main47101-02460iZRE181..CVT201210-201505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15007iZRE181201210-201505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZRE181201210-201505

47121PAD, BRAKE PEDAL

main31321-42010iZRE181..6F201210-201505

main47121-42010iZRE181..CVT201210-201505

47124SHAFT, BRAKE PEDAL

main90101-10039iZRE181201210-201505

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iZRE181201210-201505

47264APIN(FOR PUSH ROD)

main90249-08256iZRE181201210-201505

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02160iZRE181201210-201505

8401

9011908C42

main90119-08C42

90119W0012

main90119-W0012

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

14 parts on this diagram · 1 diagram in section
