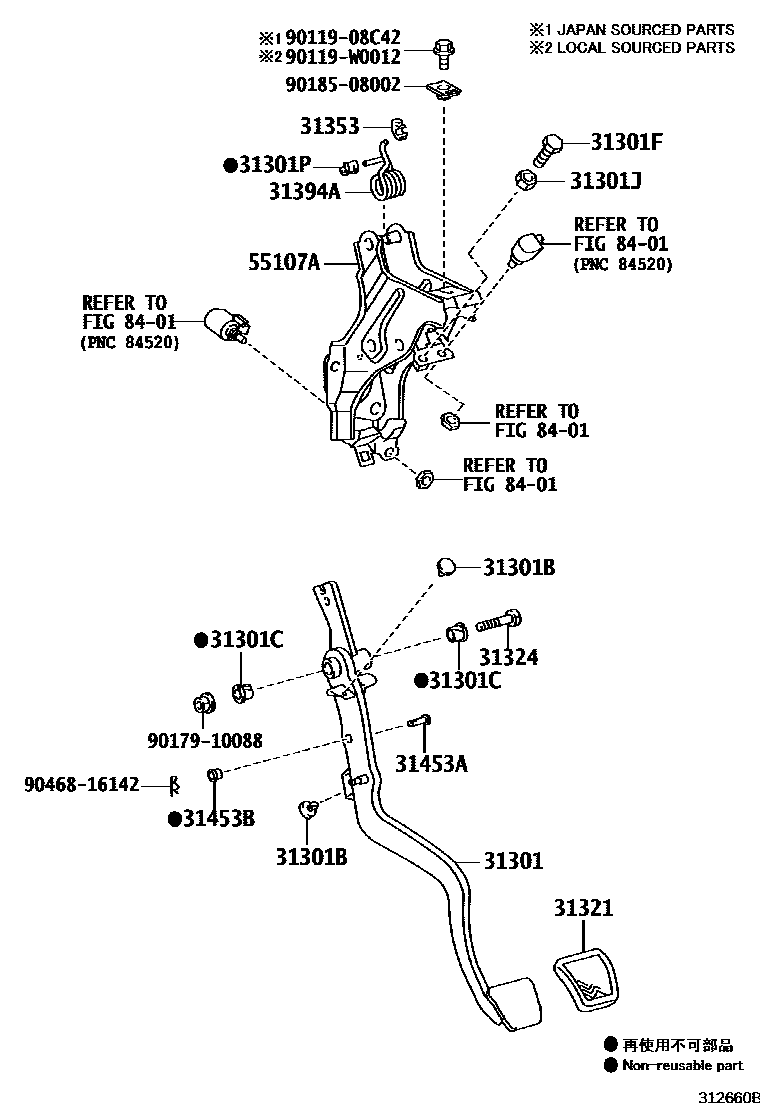

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0F141iZRE181..6F201210-201505

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-W0002iZRE181..6F201210-201505

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZRE181..6F¥120201210-201505

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZRE181..6F¥110201210-201505

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iZRE181..6F¥70201210-201505

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZRE181..6F¥100201210-201505

31321PAD, CLUTCH PEDAL

main31321-42010iZRE181..6F¥230201210-201505

31324SHAFT, CLUTCH PEDAL

main90109-10167iZRE181..6F¥190201210-201505

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0F010iZRE181..6F201210-201505

31394ASPRING, PEDAL W/HOOK

main31394-0F020iZRE181..6F201210-201505

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZRE181..6F¥130201210-201505

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE181..6F¥110201210-201505

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0F071iZRE181..6F201210-201505

8401

9011908C42

main90119-08C42¥80

90119W0012

main90119-W0012

9017910088

main90179-10088¥100

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

19 parts on this diagram · 2 diagrams in section
