WATER PUMP

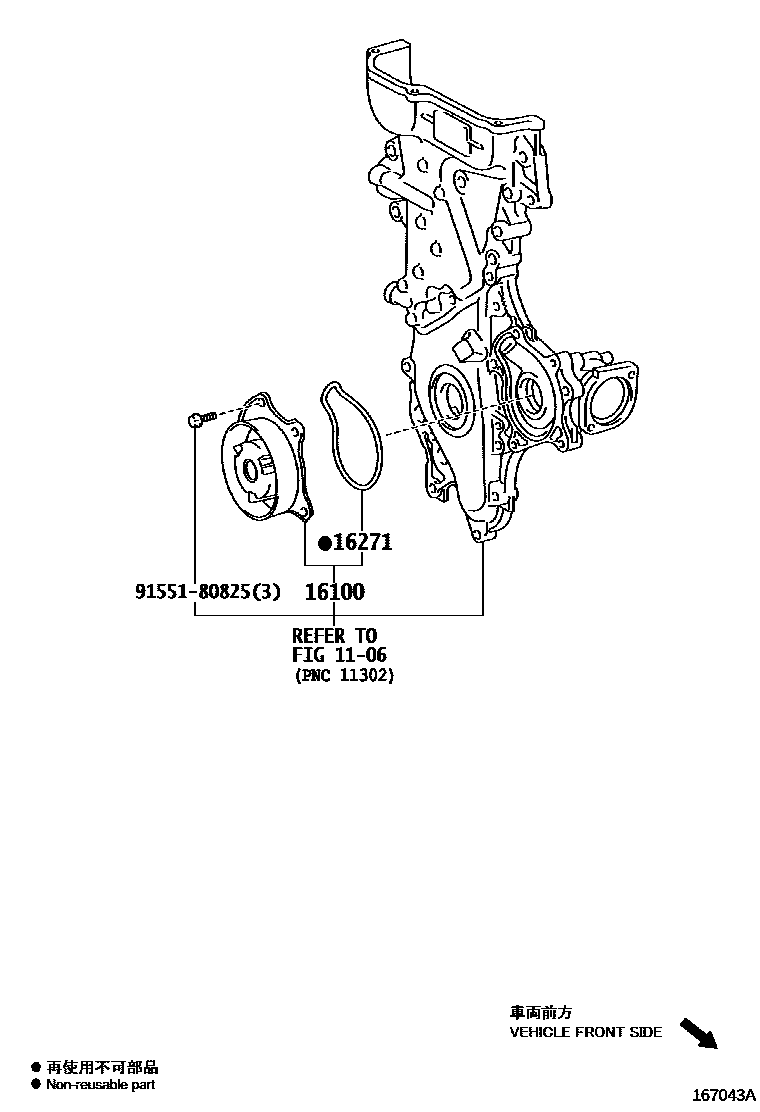

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-09501i201210-201505

(L)

main16100-39466i201210-201505

(J)

16271GASKET, WATER PUMP

main16271-37010i201210-201505

9155180825

main91551-80825

4 parts on this diagram · 1 diagram in section
