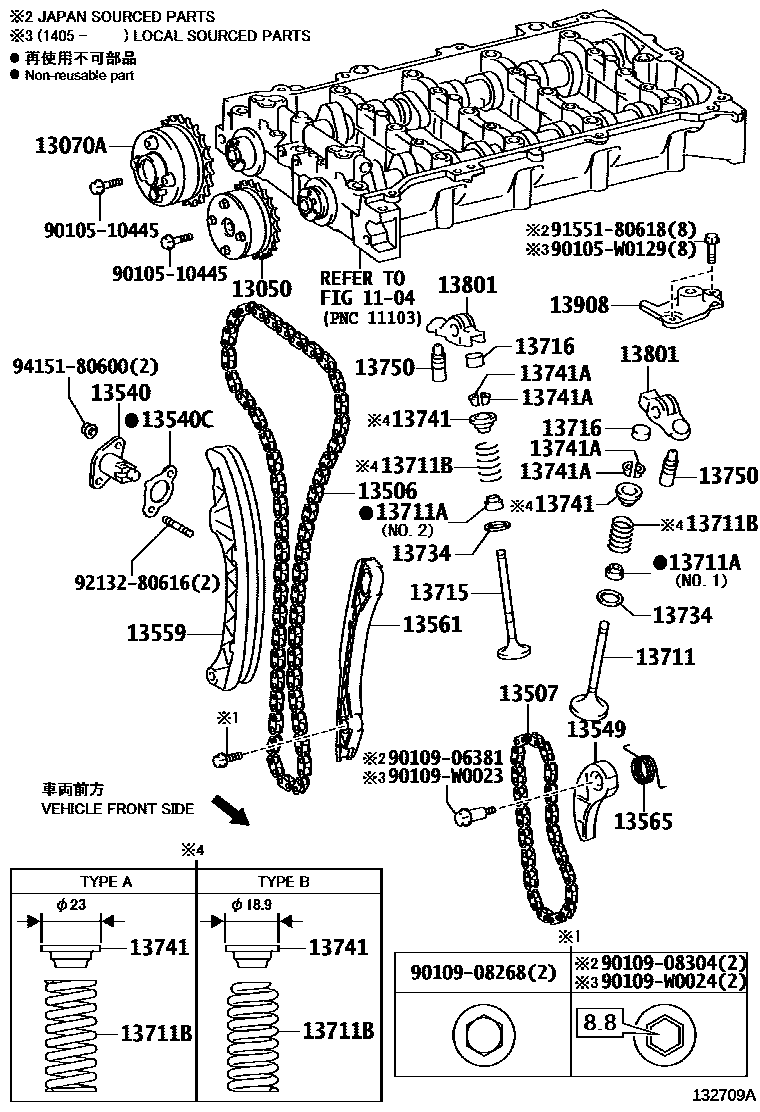

CAMSHAFT & VALVE
1104
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
(J)
13506CHAIN SUB-ASSY
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
MADE IN EUROPE
(J)
MADE IN JAPAN
13561DAMPER, CHAIN VIBRATION, NO.1
MADE IN JAPAN
13565SPRING, CHAIN DAMPER
(L)
(J)
13711VALVE, INTAKE
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
13711BSPRING, COMPRESSION(FOR INNER)
TYPE A:REFER ILLUST.
L=51.88
13715VALVE, EXHAUST
(L)
(J)
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(L)
(L)
(J)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L)
(J)
(J)
13908DAMPER SUB-ASSY, VALVE ROCKER ARM LOST MOTION
9010510445
main90105-10445
90105W0129
main90105-W0129
9010906381
main90109-06381
9010908268
main90109-08268
9010908304
main90109-08304
90109W0023
main90109-W0023
90109W0024
main90109-W0024
9155180618
main91551-80618
9213280616
main92132-80616
9415180600
main94151-80600
32 parts on this diagram · 1 diagram in section
