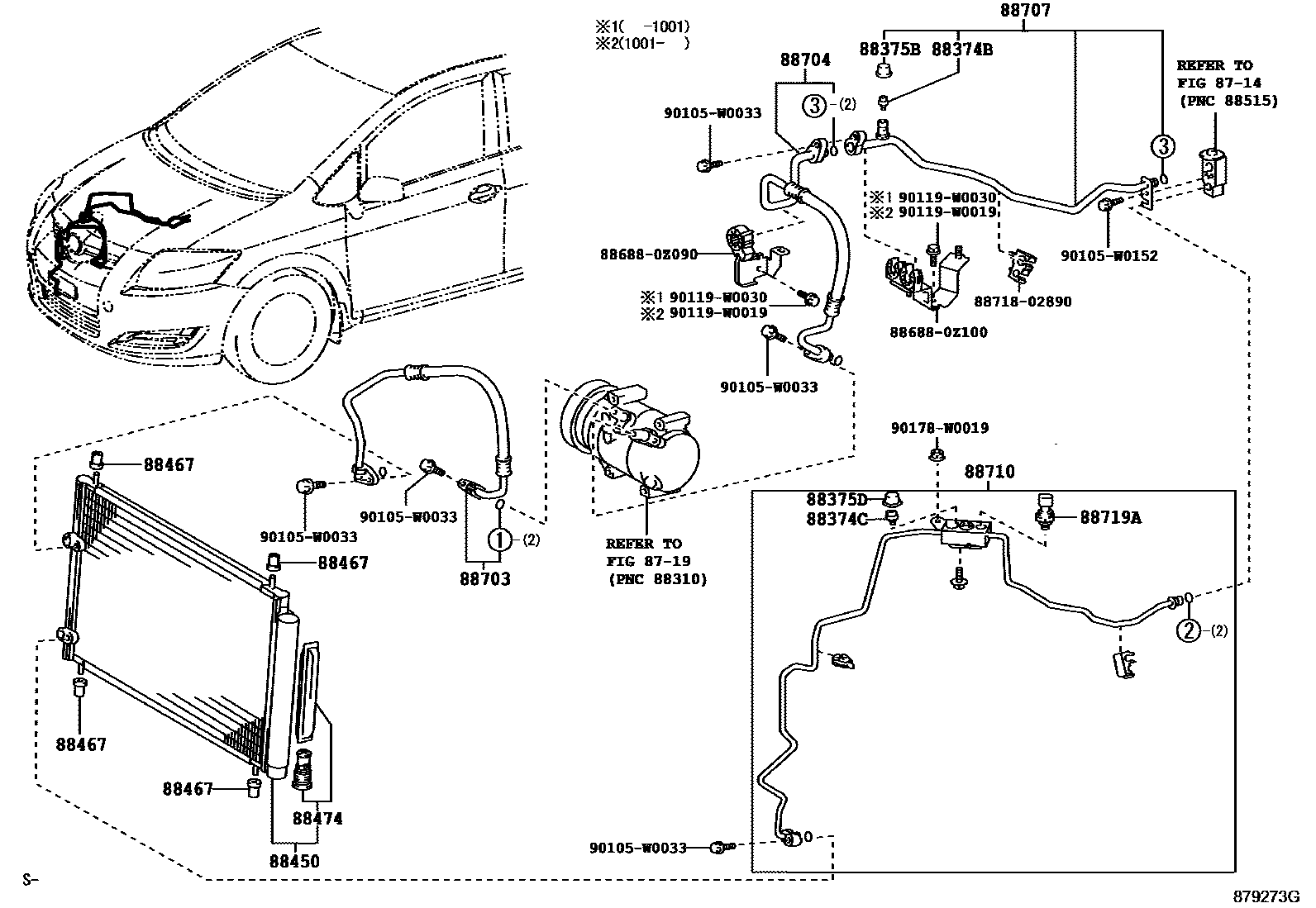

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iADE150200706-201001

88374CVALVE, SERVICE, NO.2

main88374-30010iADE150,ZRE15#..RS,RT,RX200706-201001

main88374-33070iNRE150200811-201001

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZZE150200706-201001

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iADE150200706-201001

88450CONDENSER ASSY, W/RECEIVER

main88450-02280iNRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

main88450-02410iADE150..RX200804-201210

main88450-12290iADE150200706-200804

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

88474DRYER, COOLER

main88474-12030iADE150200706-200804

main88474-17010iZZE150200706-201210

88703HOSE SUB-ASSY, DISCHARGE

main88703-02350iZRE15#200706-201001

main88703-02360iZZE150200706-200811

main88703-02380iADE150200706-200801

sub88703-02610

main88703-02580iNRE150200811-201001

main88703-02590iADE150..RX200903-201001

main88703-02610iADE150200802-200903

88704HOSE SUB-ASSY, SUCTION

main88704-02580iZRE15#200706-201001

main88704-02590iZZE150200706-200811

main88704-02620iADE150200706-200903

main88704-02830iNRE150200811-201001

main88704-0Z040iADE150..RX200903-201001

88707PIPE SUB-ASSY, SUCTION

main88707-02030iZZE150200706-200903

main88707-02150iNRE150200811-201001

main88707-05070iADE150,ZRE151..RX,SOL,TERRA200902-201001

88710TUBE ASSY, AIR CONDITIONER

main88710-02800iADE150200706-201001

main88710-02810iZZE150200706-201001

main88710-0Z180iNRE150..TERRA200811-201001

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

886880Z090BRACKET, COOLER DIAPHRAGM

main88688-0Z090

886880Z100BRACKET, COOLER DIAPHRAGM

main88688-0Z100

8871802890PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02890

90105W0033

main90105-W0033

90105W0152

main90105-W0152

90119W0019

main90119-W0019

90119W0030

main90119-W0030

90178W0019

main90178-W0019

22 parts on this diagram · 5 diagrams in section
